Dean, Smith & Grace Factory Tour - page 1
Factory Tour Page 2    Factory Tour Page 3    Factory Tour Page 4
Operation & Parts Manuals are available
for most Dean, Smith & Grace Lathes

Although not as detailed, nor in the same artistic class as that beautifully photographed by Robert Yarnall Richie of the Hendey factory in 1942, this tour of the Dean Smith & Grace factory during 1965 - the Company's 100th anniversary - is still an interesting record of the machine tools used and the manufacturing techniques and processes employed.

Joseph Dean

James Smith

100th Anniversary Medal

John Grace

Keighley - part of what was once the once industrial West Riding of Yorkshire

A section of the drawing office

A design team discussion

Production Control Department

The right-hand side of the main assembly plant

Left-hand side of the main assembly plant

A section of the Turning Department

Boring Department

Headstock Assembly Department

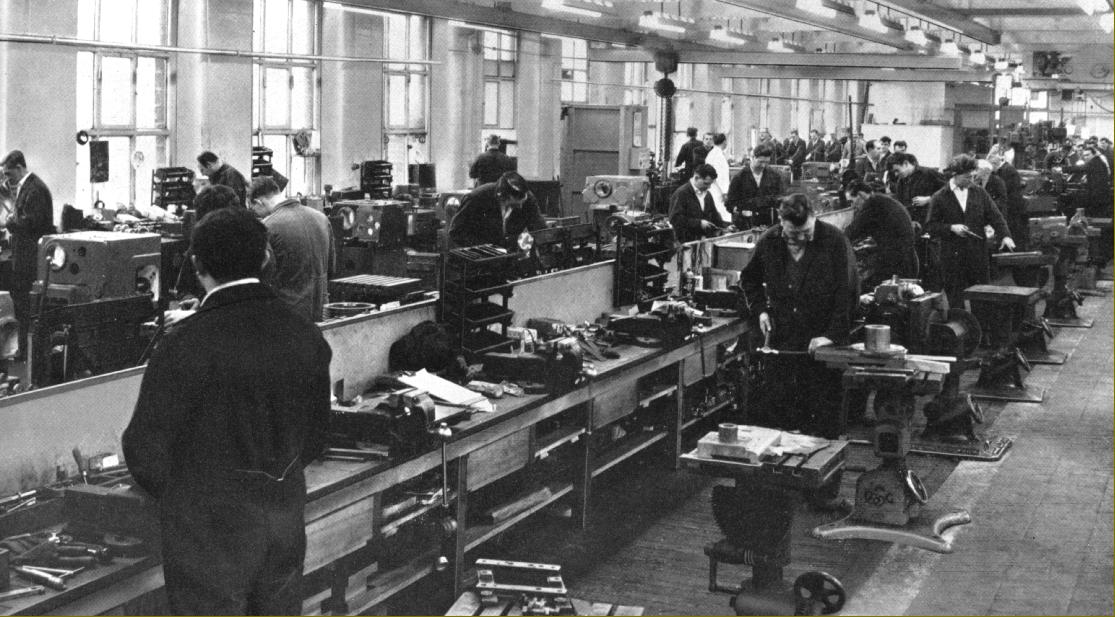

Small Unit Assembly Department

Multi-boring head fitted to a Kearns horizontal borer

Russell Hyrofeed cold sawing machines

Landis Lund cylindrical grinder with pivoted caliper gauges - used for the final finishing of spindles of various kinds

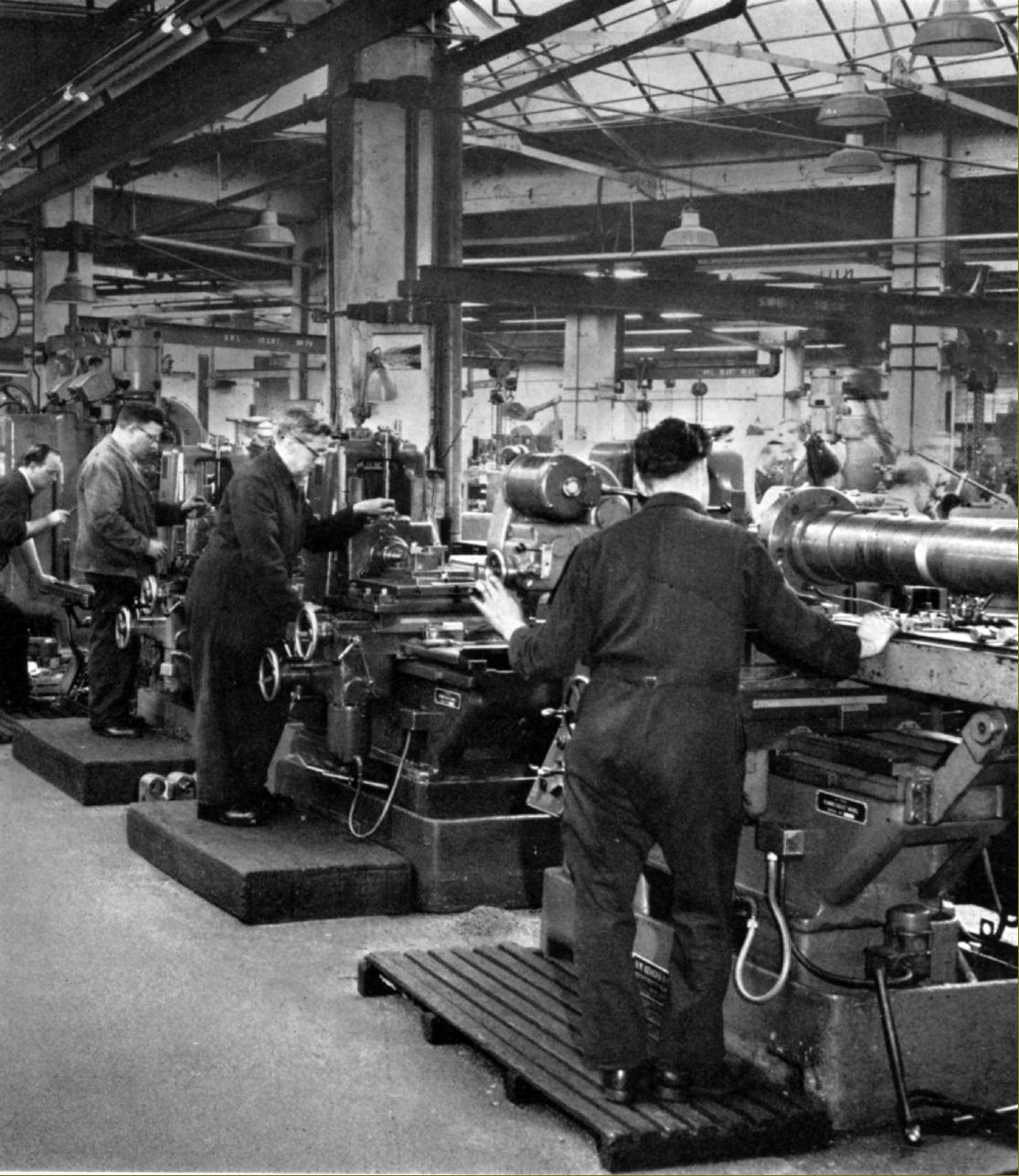

A battery of small Kearns S-Type horizontal borers used mainly for the finishing of axial and radial holes in the Cam-lock noses of lathe spindles

A Lockwood planing machine equipped with an Archdale milling head in addition to the conventional planning saddle and tool slide.

A row of Archdale radial-arm drilling machines - used mainly for the rough drilling of gearboxes

Newhall-Keighley grinder being used for the finishing of tapers in headstock and tailstock spindles

Churchill-Milnes double-ended fine boring machine with optical setting equipment - used for the precision boring of headstocks

Dean, Smith & Grace centre lathe in action

A row of Cincinnati vertical milling machines used for general-purpose work

Cincinnati horizontal milling machines

Hurth Keyseating machine.
Keyseating is process where internal shapes and forms are generated using a reciprocating, single-point cutting tool (similar to the operation of a horizontal shaper or vertical slotter). The keyseater is normally used to cut internal keyways, and other straight-sided shapes and forms, in one-off or short-run parts
