Pictures of the superbly-engineered powered-feed and screwcutting attachment that drove the top slide - and available for most plain-turning 70 and 102 models.

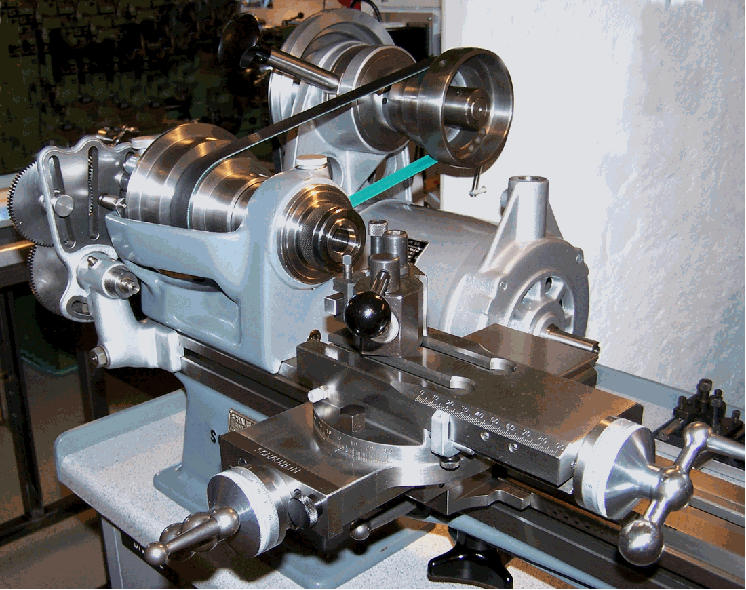

Schaublin 102: the 3-slot bracket carrying the changewheels was bolted into a T-slot running down the front of the bed. In this picture the universally-joined shaft to the top slide is not fitted.

Schaublin 102--changewheel bracket in place

102 with screwcutting/power-feed attachment removed

102 changewheels in a compound train on their mounting bracket

The complete changewheel set

Schaublin 70 with one version of the makers screwcutting and power-feed attachment in place
