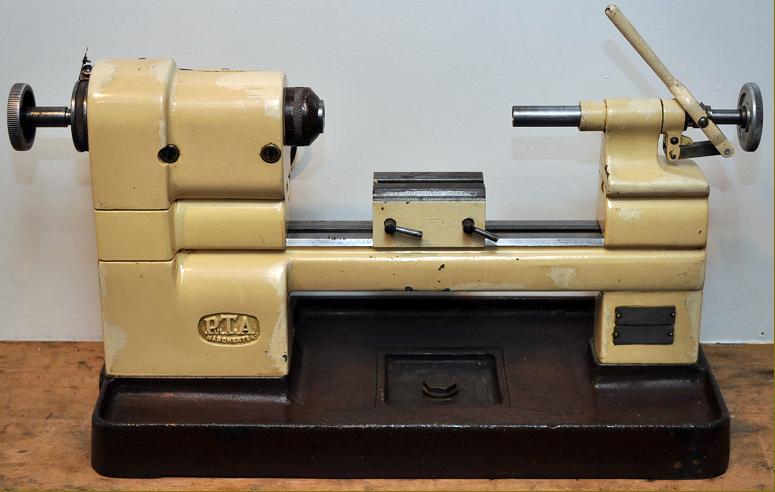

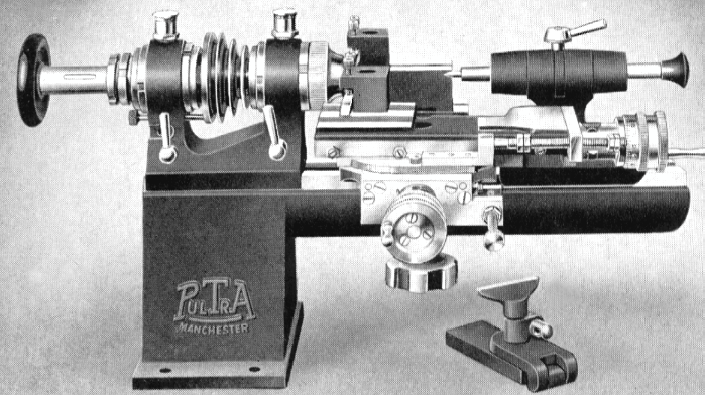

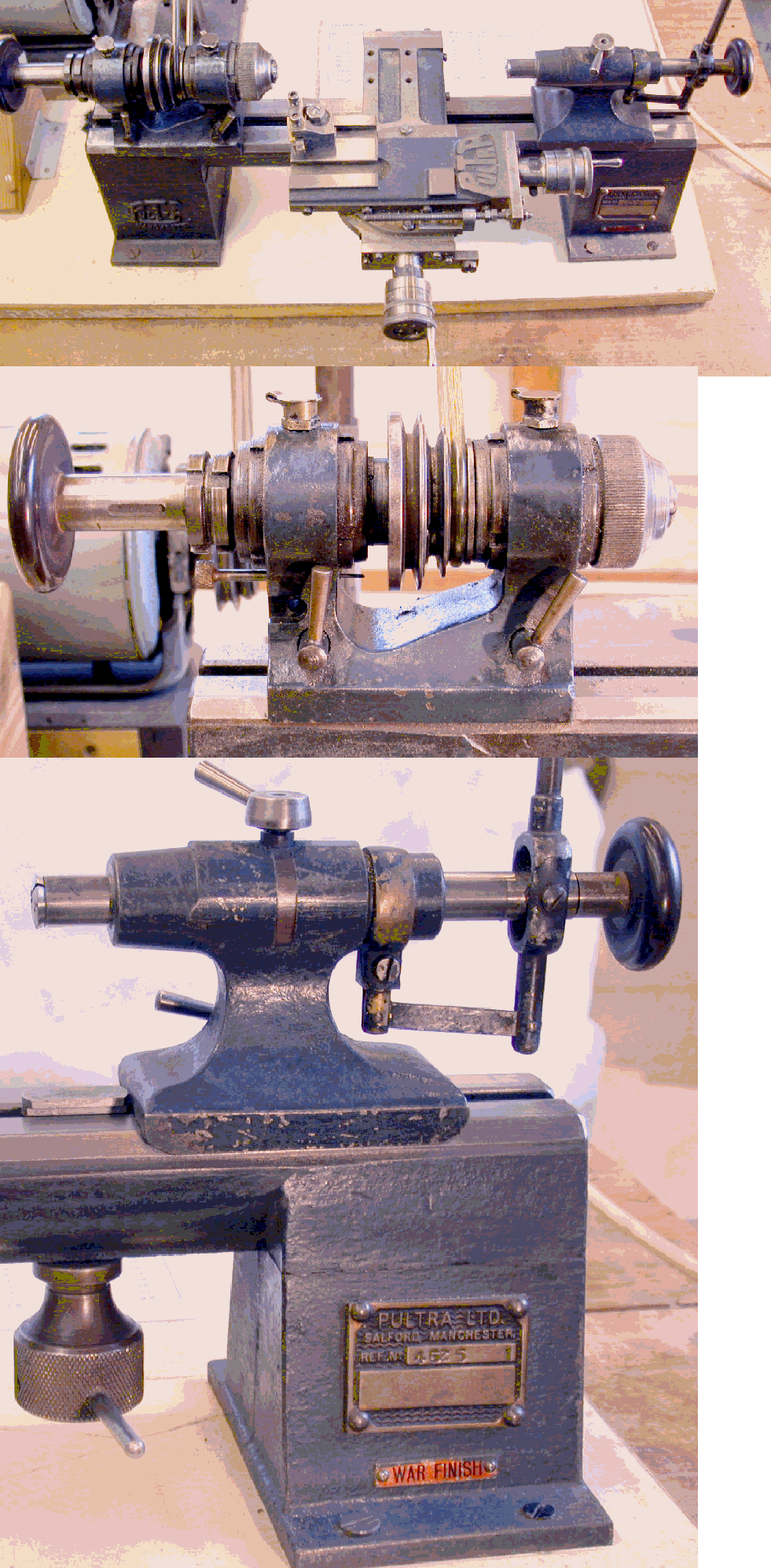

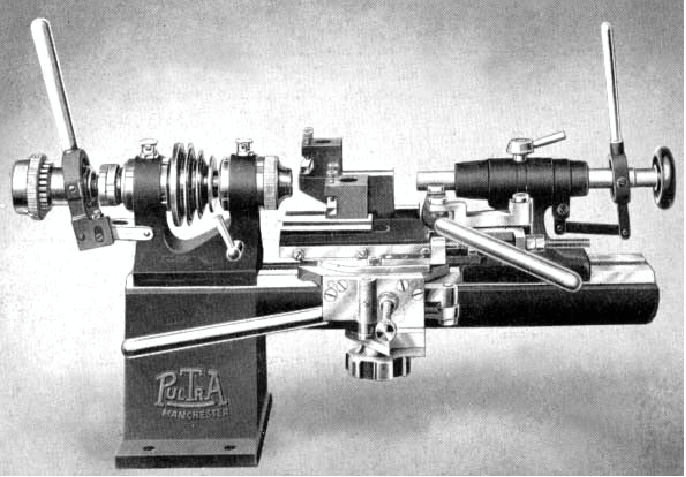

Production version HY42 (8 mm collet) and HU42 (10 mm collet) mounted on the cast-iron base plate (B128) and fitted with a bar feed, self-indexing head and cut-off slide.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
A complex accessory set resulted in the special the unusual thread-milling lathe Model NT59. This dipped into the accessories catalogue to employ a cast-iron base plate (B128) in conjunction with a 16" Long Bed (PB2), a 50 mm centre height 10mm bore "geared headstock" (PH6A) with a 72 : 1 worm reduction, a guide frame (V124) and a "support" tailstock (PT6) that acted as a fixed steady. This version was designed for the accurate production of threads and worms and picked up the pitch from a "master thread" arranged (like those used in ordinary thread-chasing attachments), at the rear of the headstock, but cut the tread with a rotating cutter held in a live spindle (W123). The cutter could be adjusted to any angle either horizontally or vertically and the work held either in collets or (at a maximum length of 4.5") between centres using a drive plate.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

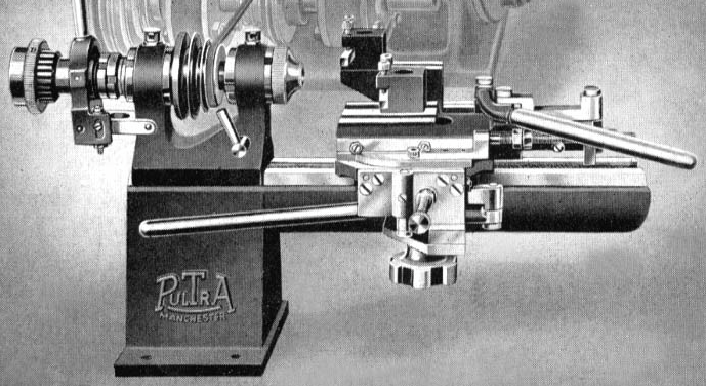

Headstock set up for simple dividing with the Indexing Unit (PM26).
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Indexing plates (M16) were available with any number of divisions up to 120. The stop for indexing was carried by a bed-mounted clamp and various adaptors to carry the indexing rings were available for the different 8 mm and 10 mm collets headstocks.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Adjustable Roller Support (PM55/1).
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|

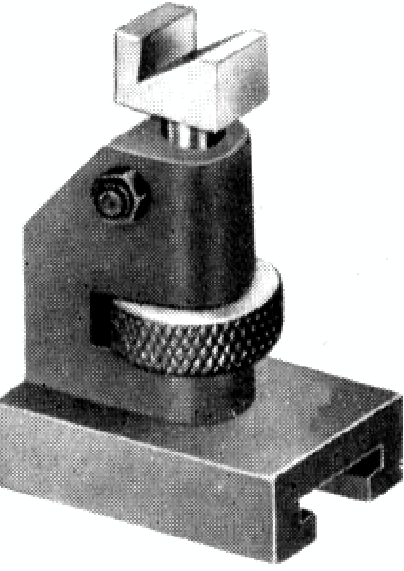

V-Steady (PM55/2)
This was recommended for use with the thread milling attachment.
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
Miniature saw Bench Assembly with Table (PM24) and Saw Arbor (C18 or C22).
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Raiser Block Set PV2
This set raised the centre height from 50 mm to 90 mm. Two identical blocks (V502) lifted the headstock and tailstock whilst the post (V501), in the middle of the picture, was used to bring the toolpost to the correct height.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
Travelling Steady (PM32/2)
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Travelling Steady in Operation.
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Hands rests and saw table. From left: 5325, PR21, PR1, PM24.
|
|
|
|
|
|
|
|
|
|
