Mentor Lathes
T.D.55 Precision and T.N.360

Little known - and seldom encountered outside their native Italy - Mentor lathes were built in the town of Carpi, near Modena, by one Mentore Garuti.

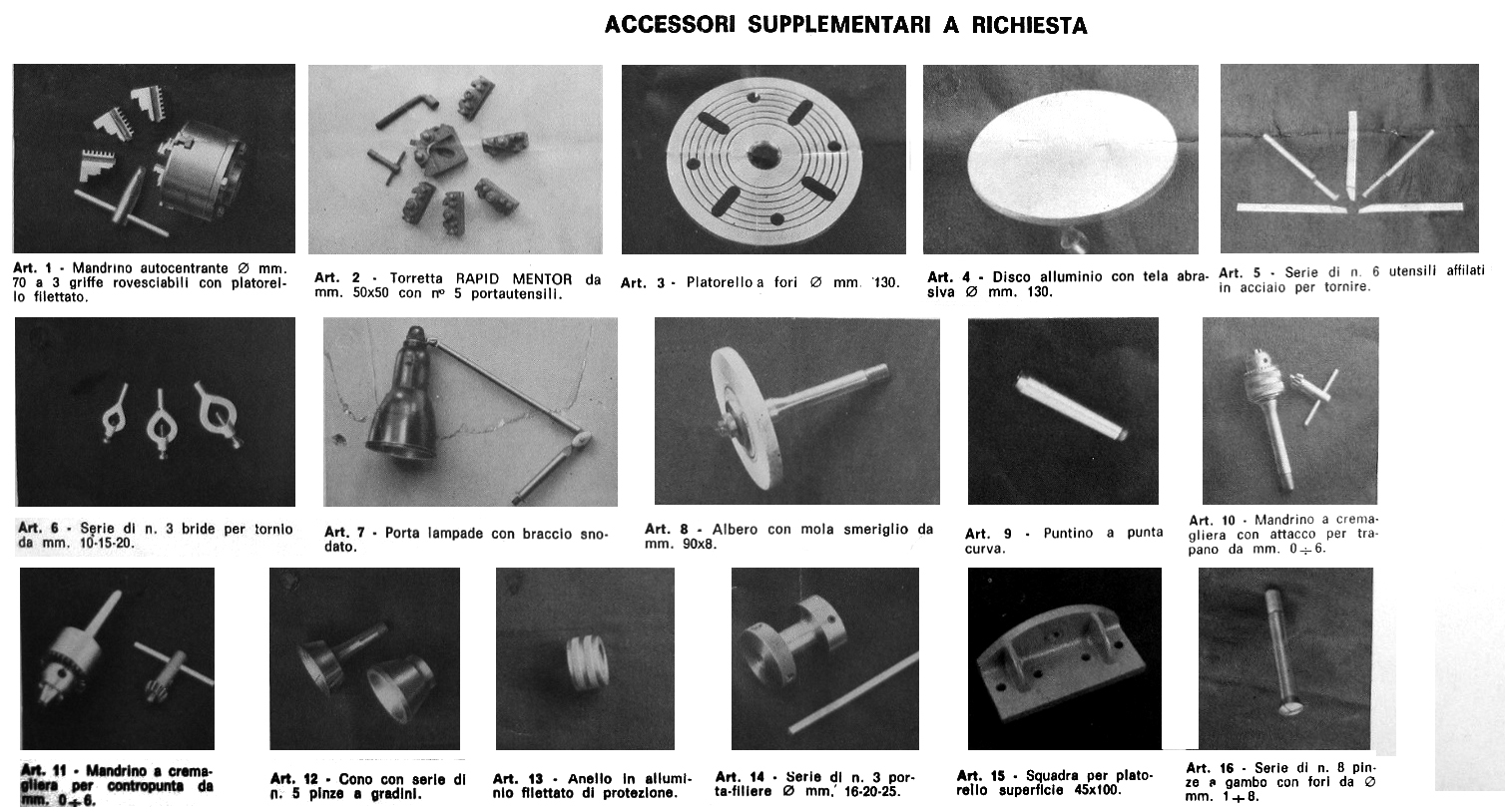

Just two types are known to the writer, the T.D. 55 a well-presented precision lathe and very much more workaday model for the amateur market, the plain-turning (non-screwcutting) T.N.360. The latter machine has a centre height of just 70 mm and accepted 360 mm between centres. Driven by a 1/5 h.p. motor, six spindle speeds were provided of 250, 350, 500, 900, 1350 and 1850 r.p.m. The T.N.360 was 750 mm long, 250 mm wide, stood 30 mm tall and had a nett weight of 40 kg. A full specification of the lathe - in English and Italian -  together with pictures of its accessories can be seen in  lower down the page

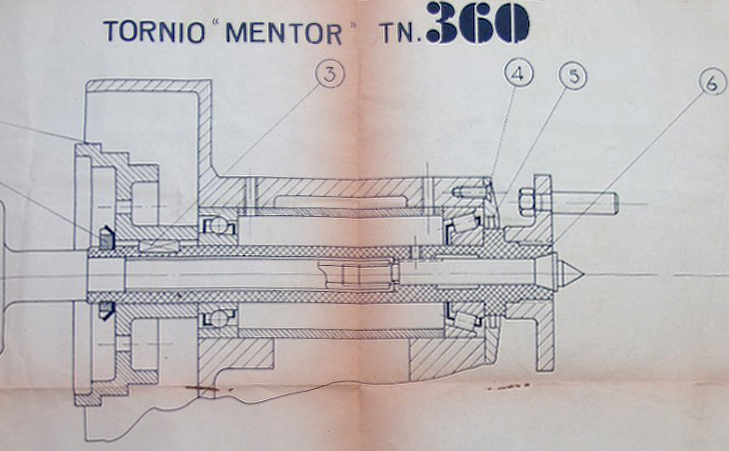

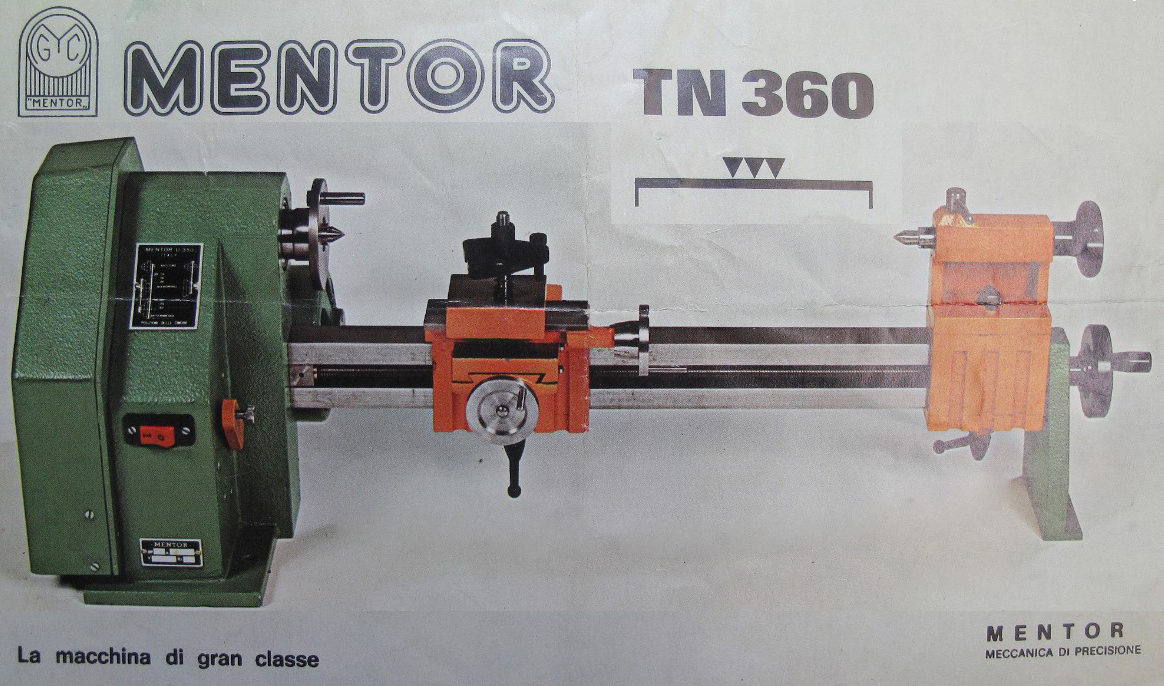

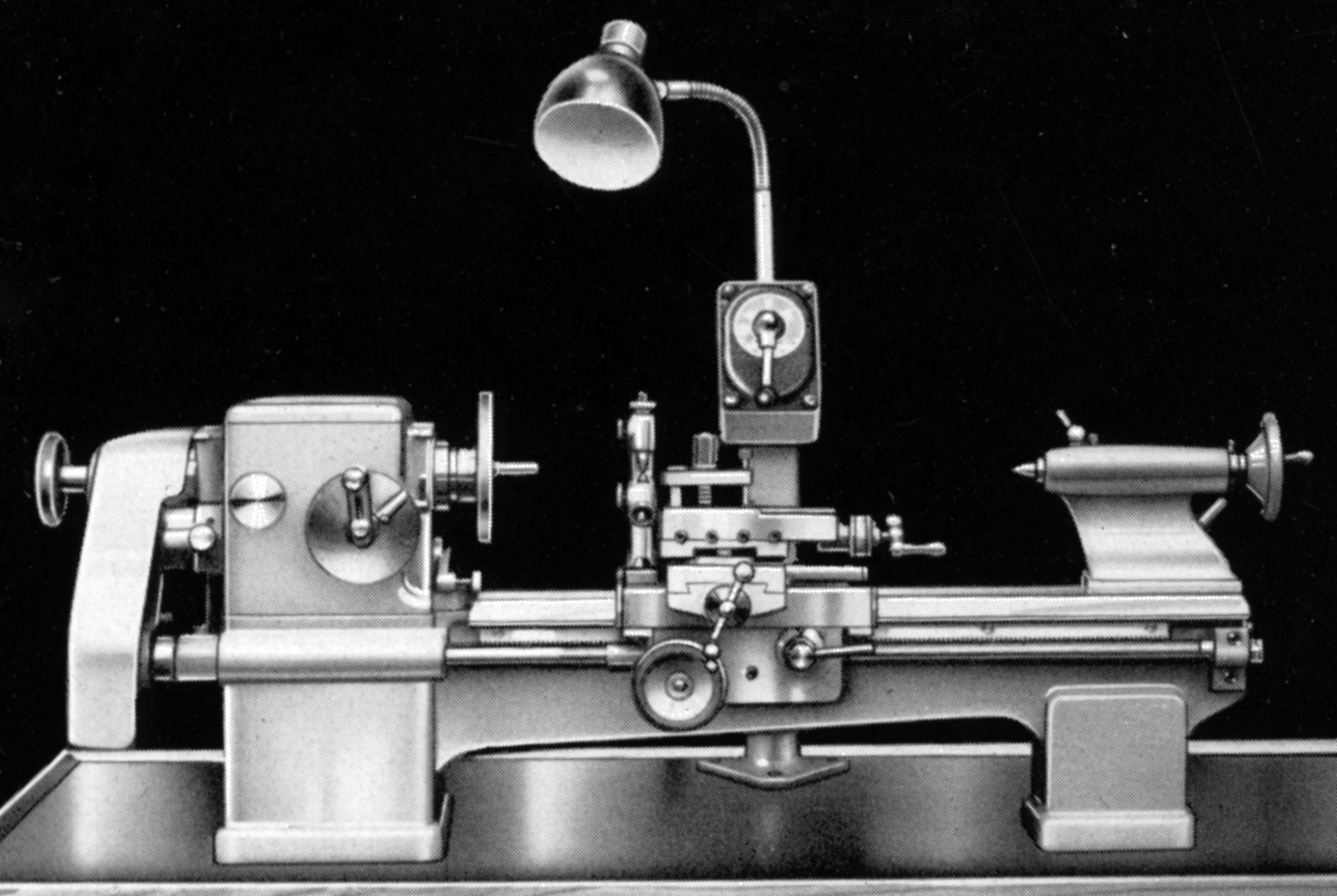

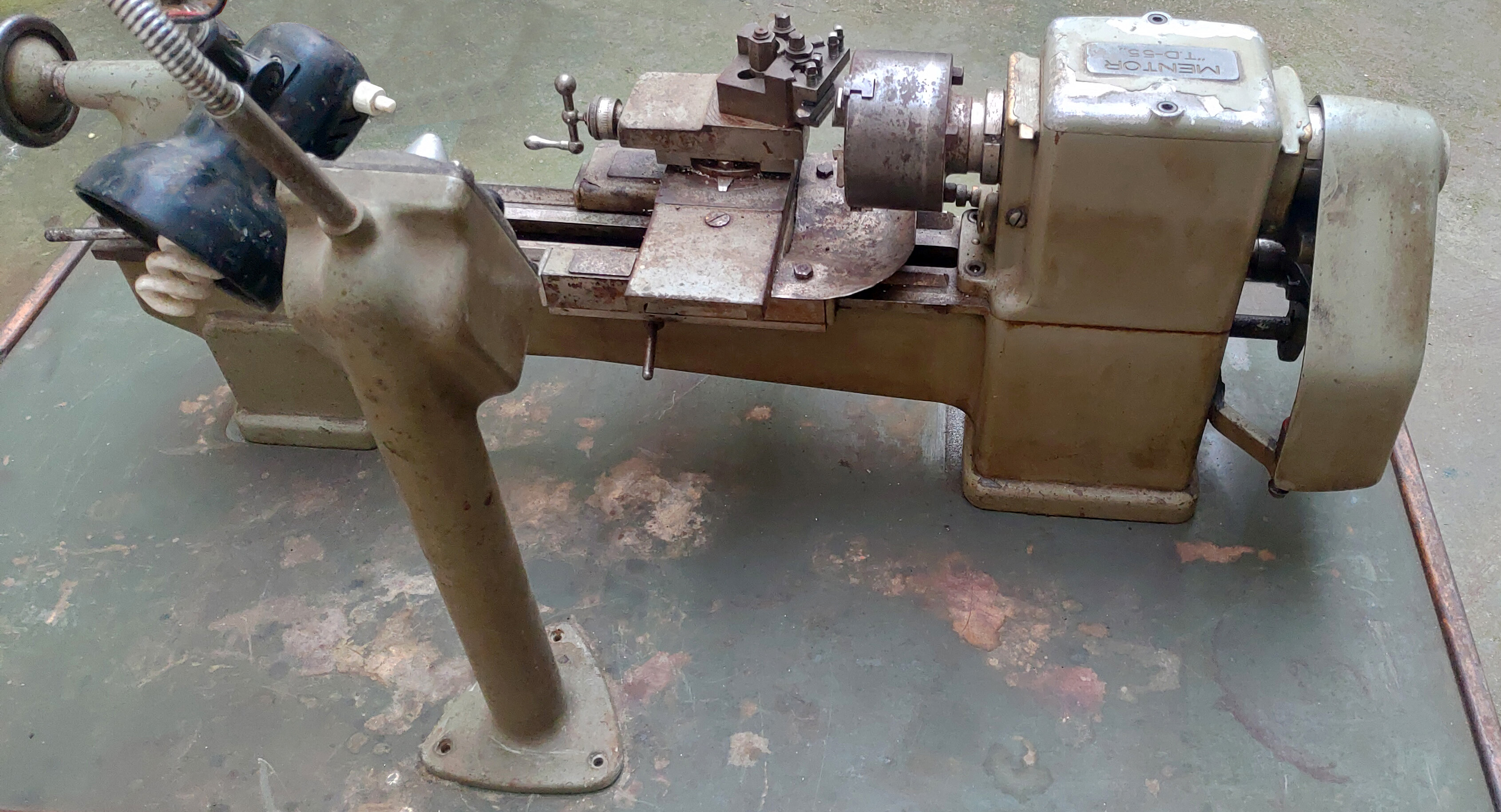

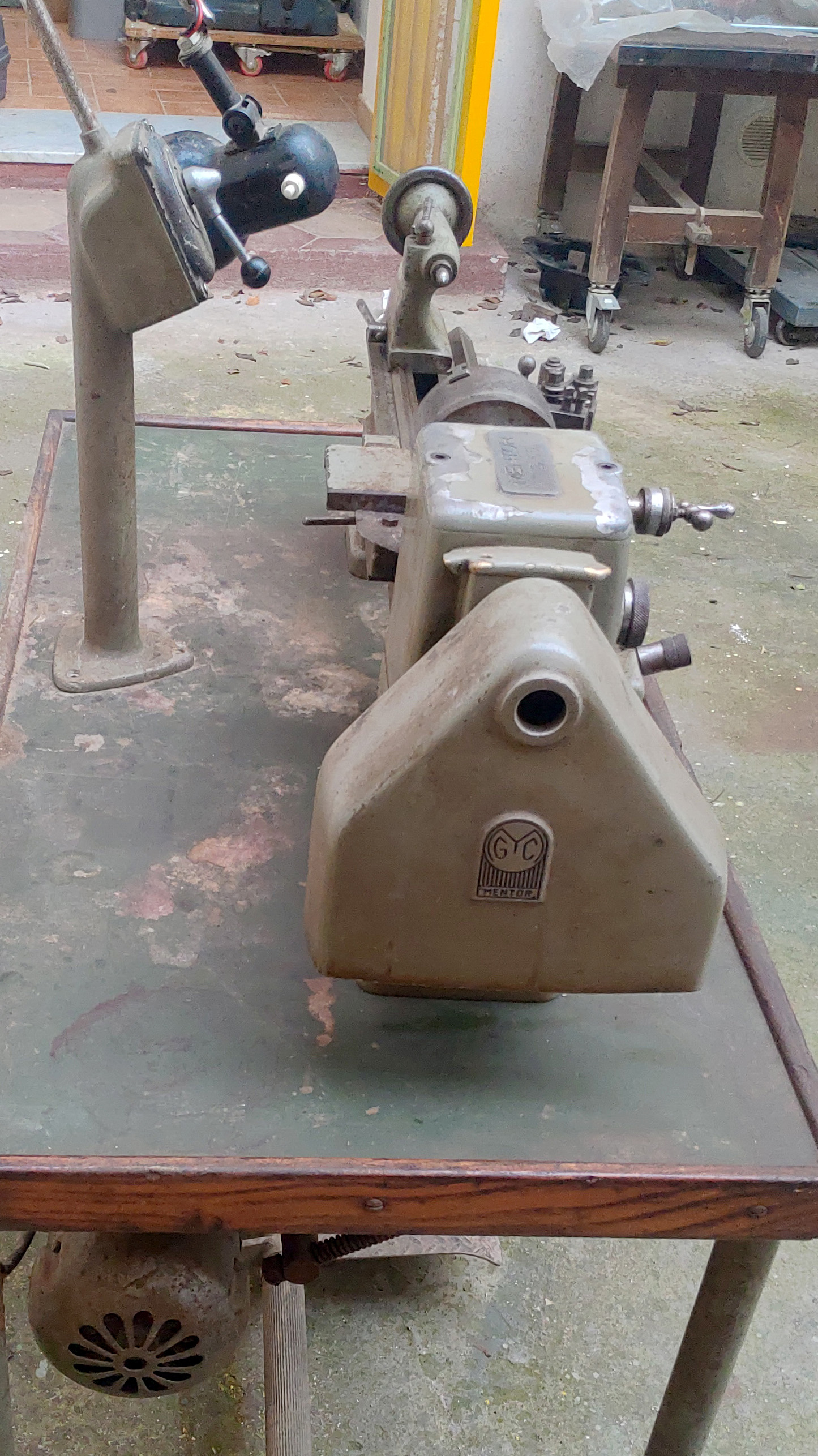

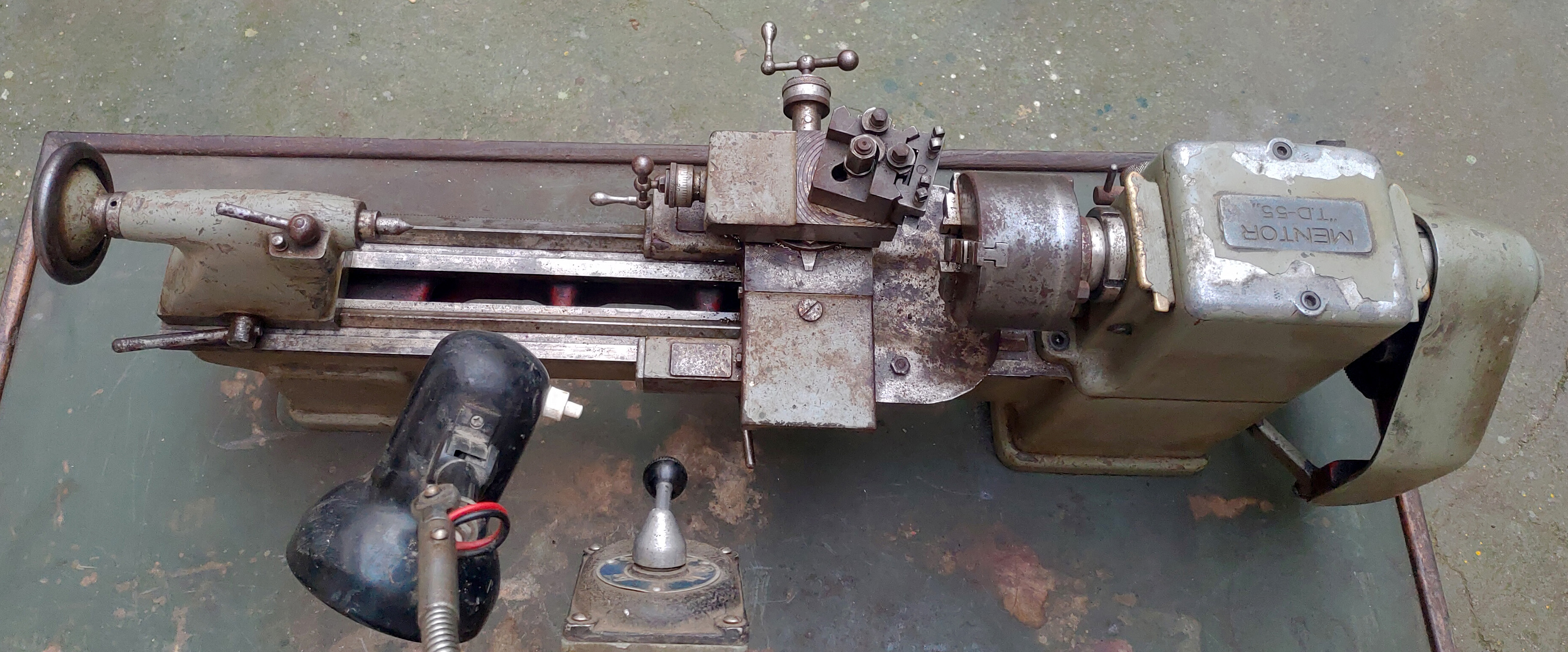

Not to be confused with "Mentor" versions of the Emco range - named Mentor as they were intended for educational use and equipped with safety switchgear - the Mentor T.D.55 had a centre height of 80 mm and took 350 mm between centres. Like that used on the very similar but smaller Lorch LAS, the substantially built bed had V and flat ways, these stopping just in front of the headstock. The result was that, to bring the cutting tool right up to the spindle nose, the cross slide had to be positioned to the left of the carriage centre line.

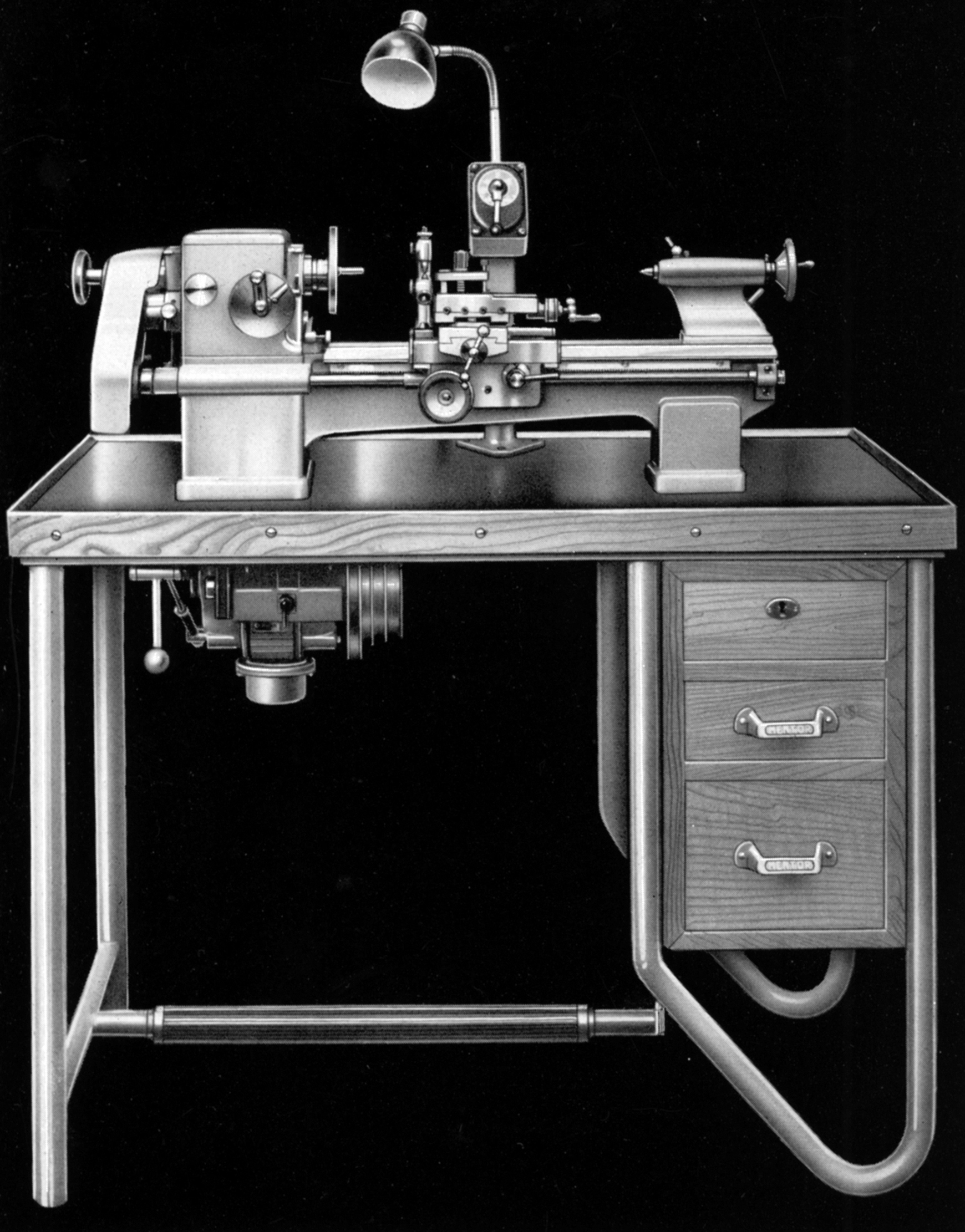

The lathe appears to have been sold complete on a stand made from tubular steel with a 500 x 1000 mm wooden top - possibly covered with something like linoleum - and three drawers on the right-hand side. The arrangement of the stand was similar to that employed on pre-WW2 American Cataract lathes, though of cleaner design and looking more like those first offered for some Levin lathes of the 1950s.

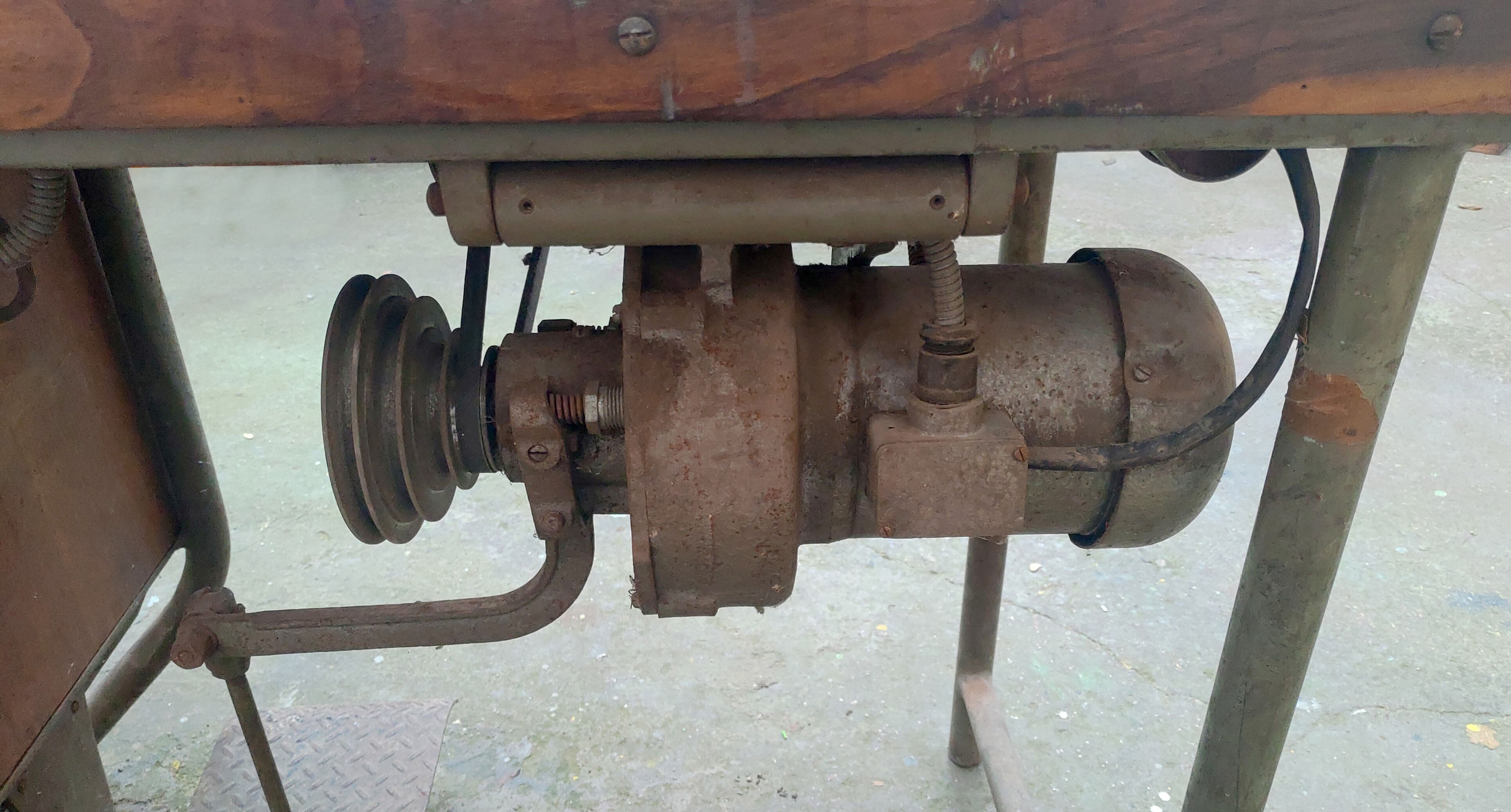

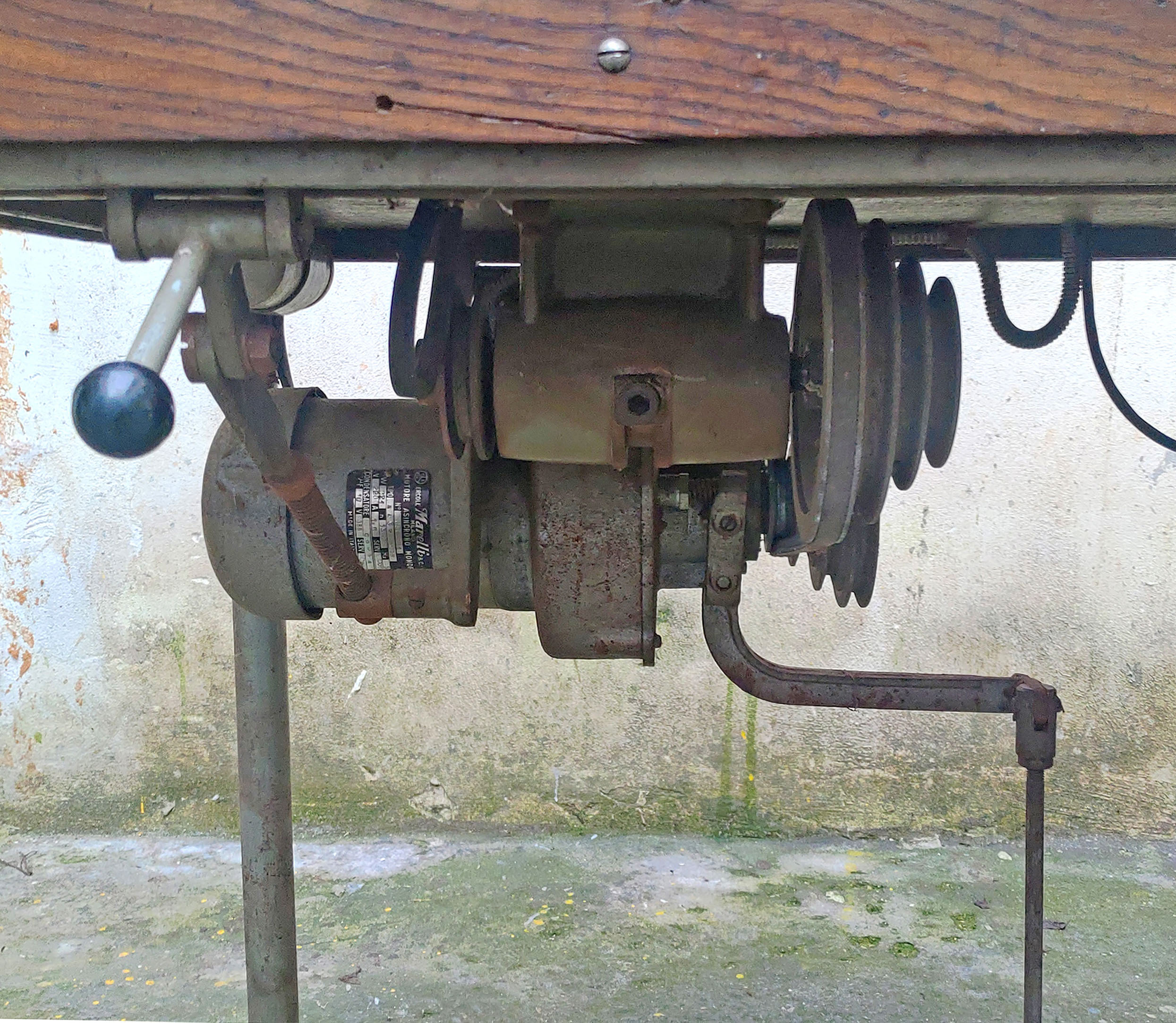

Fitted as part of the regular equipment was, slung beneath the stand, a 3-phase "
Motor Marrelli" 0.5 h.p. motor, this being controlled by a switch carried on a post behind the bed that incorporated the base of a light unit. Combined with the lathe's headstock-mounted backgear, eight spindle speeds of 90, 135, 250, 360, 565, 840, 1520 and 2250 r.p.m. were provided - the lowest of which was, perhaps, just a tad too high for comfortable screwcutting. Bored through to clear 12.5 mm, the spindle took draw-tube retained 10 mm diameter collets, the largest of which had a through bore of 7 mm - although one with a partial bore, some 55 mm long, was able to take jobs up to 10 mm in diameter.

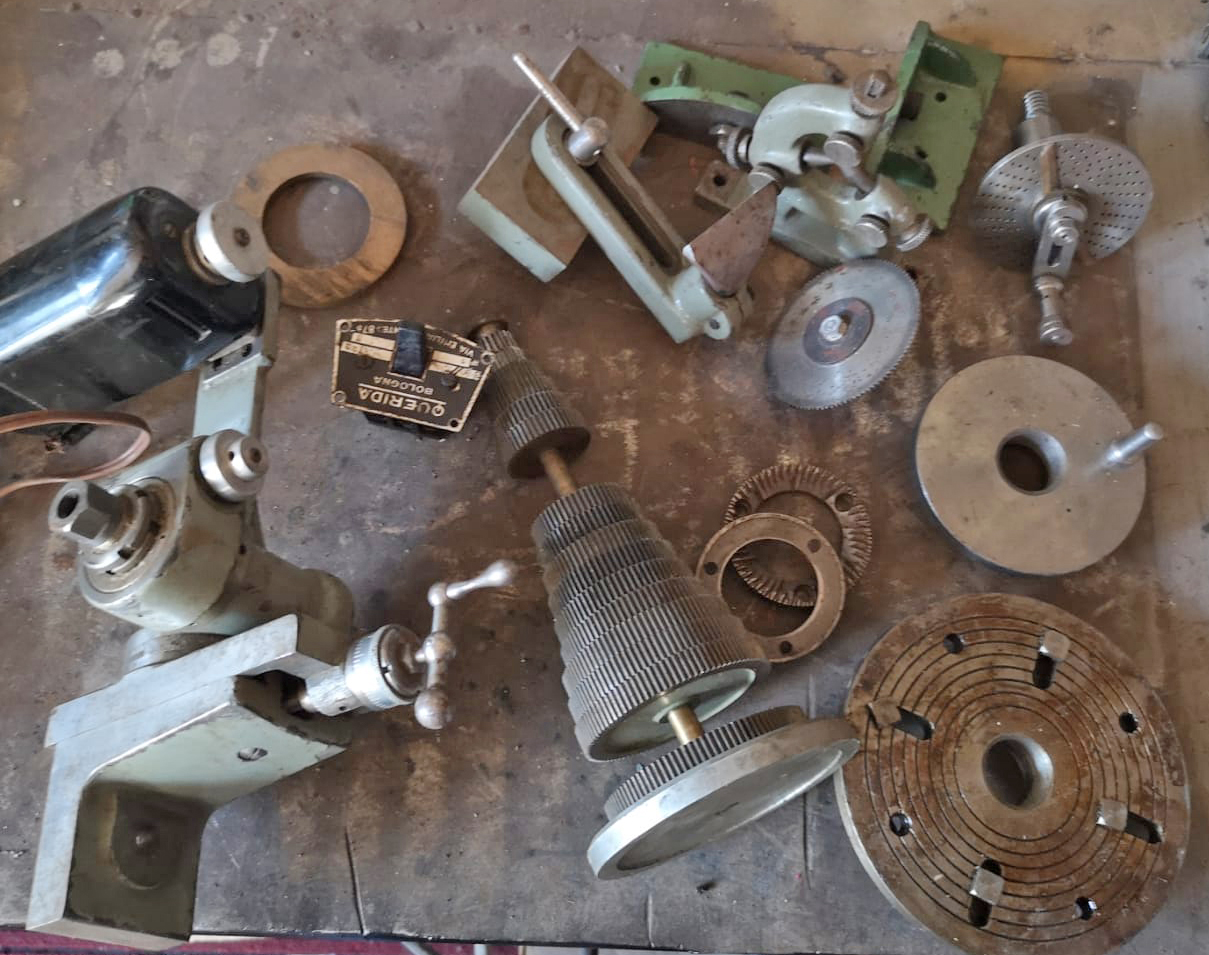

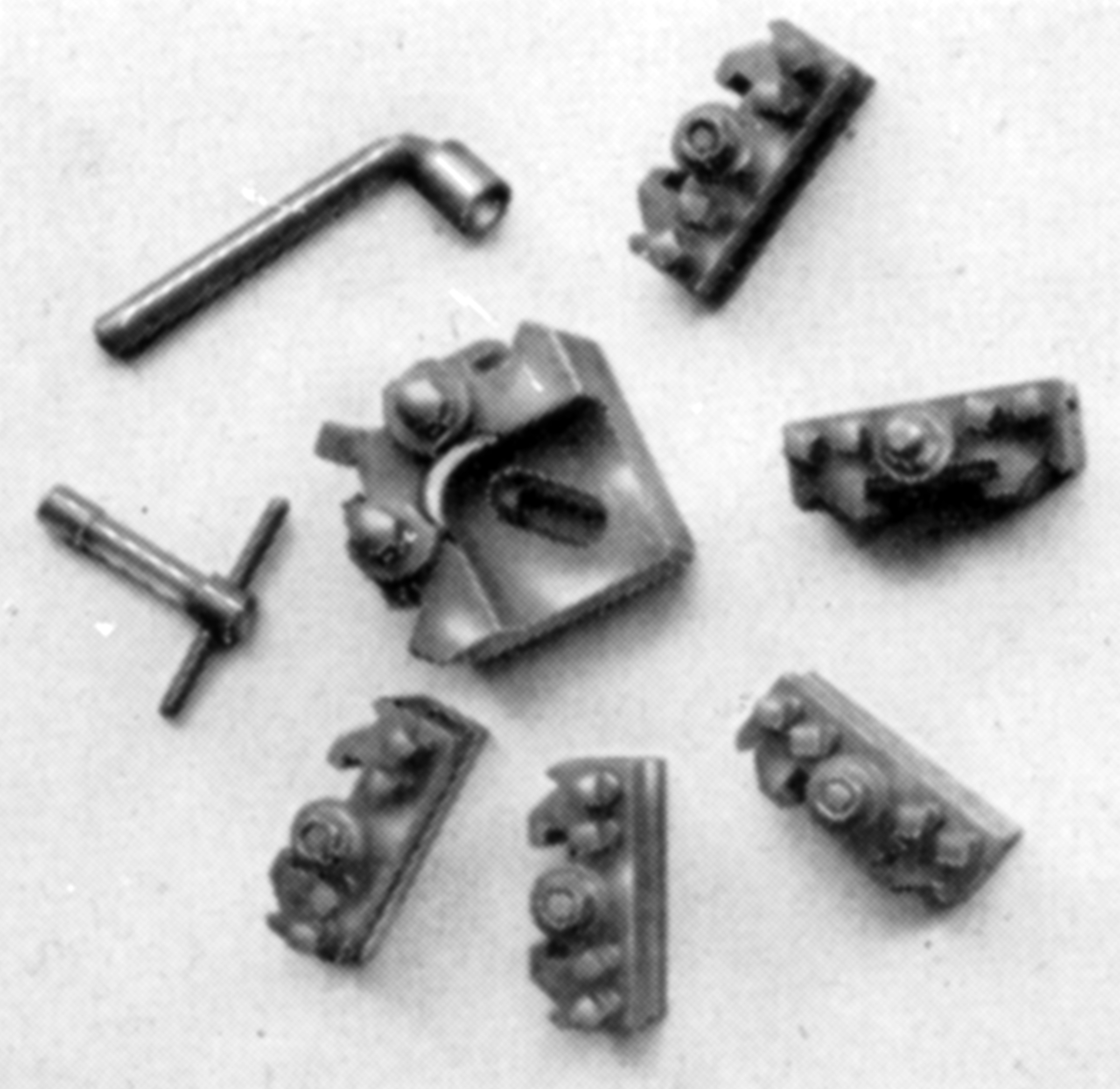

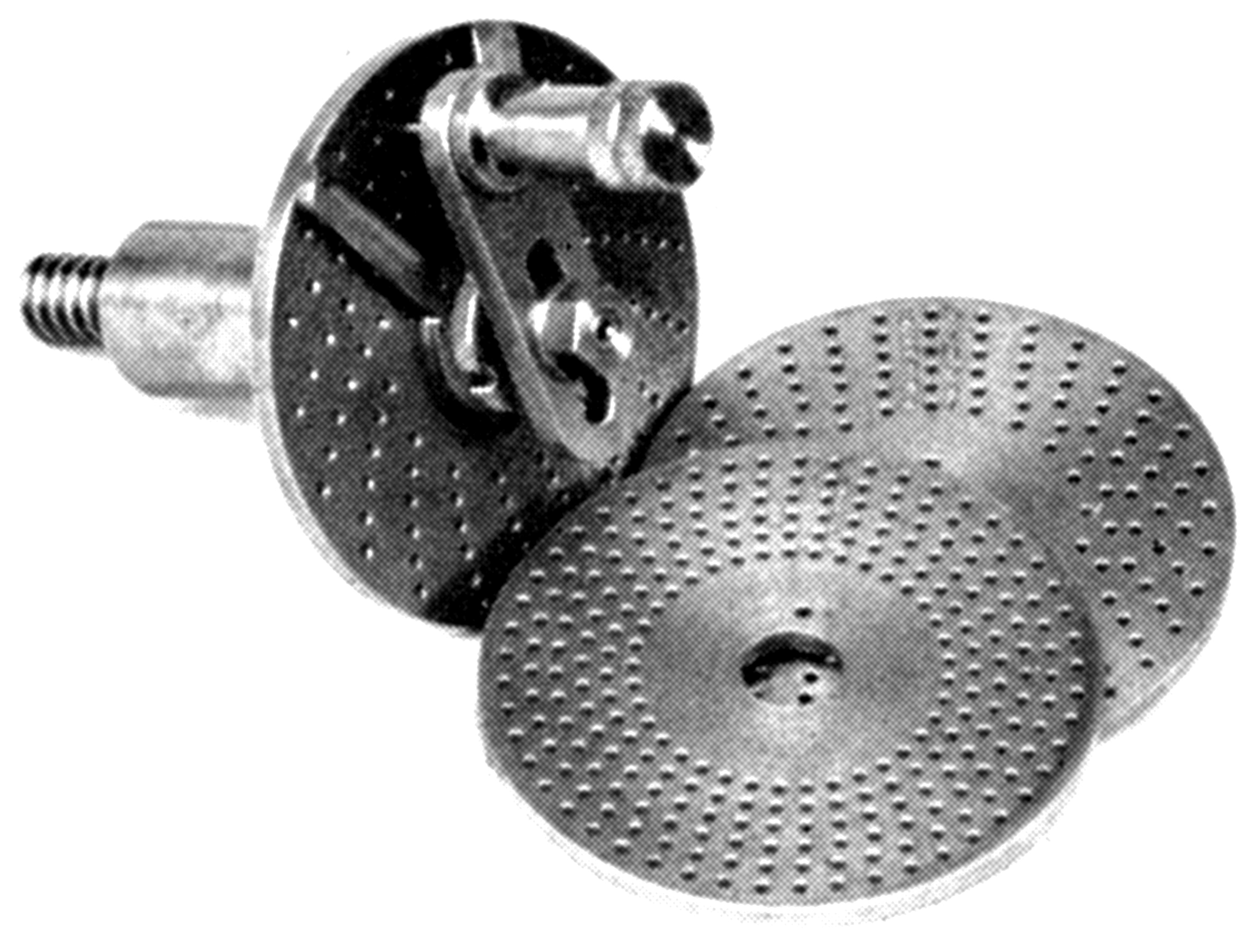

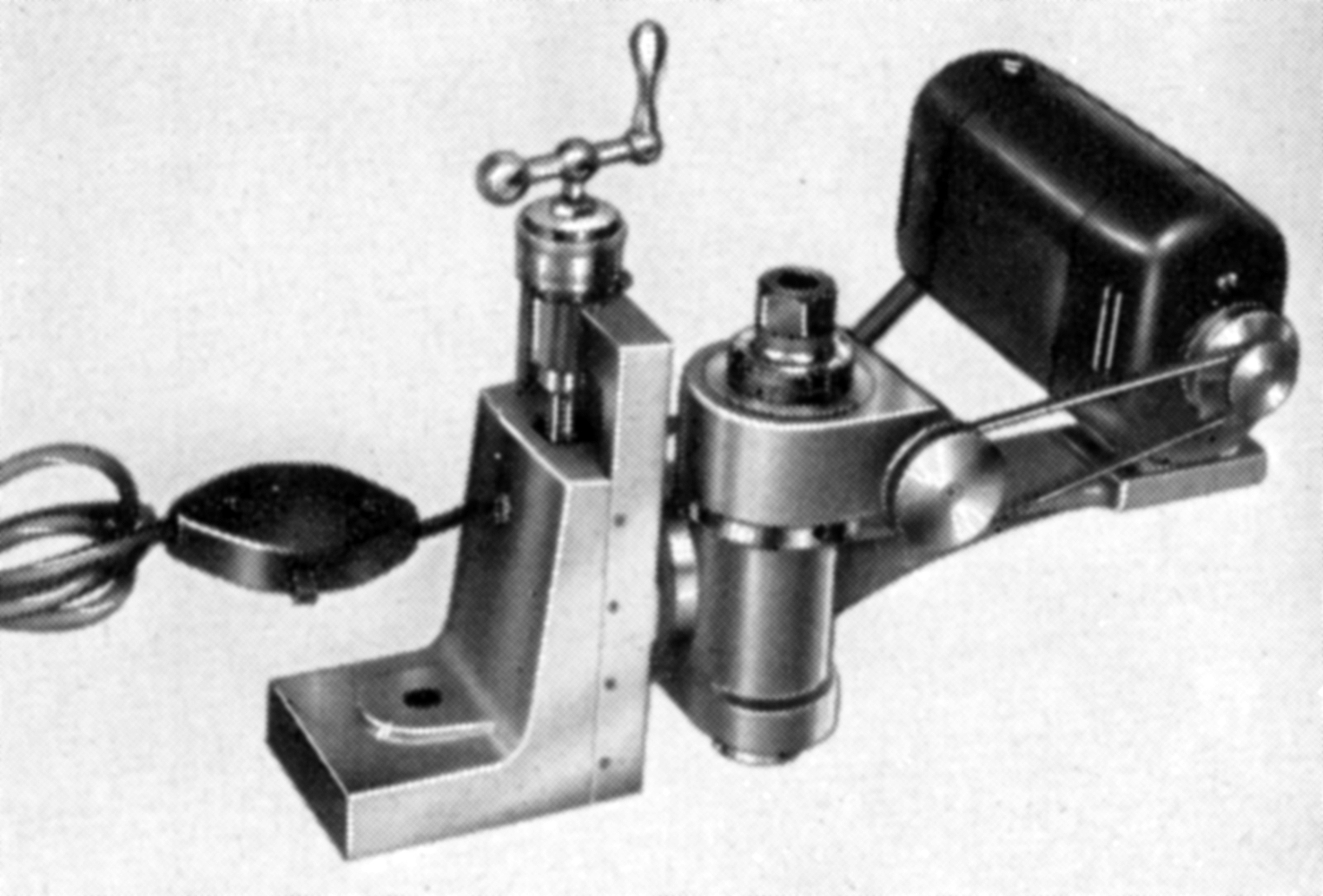

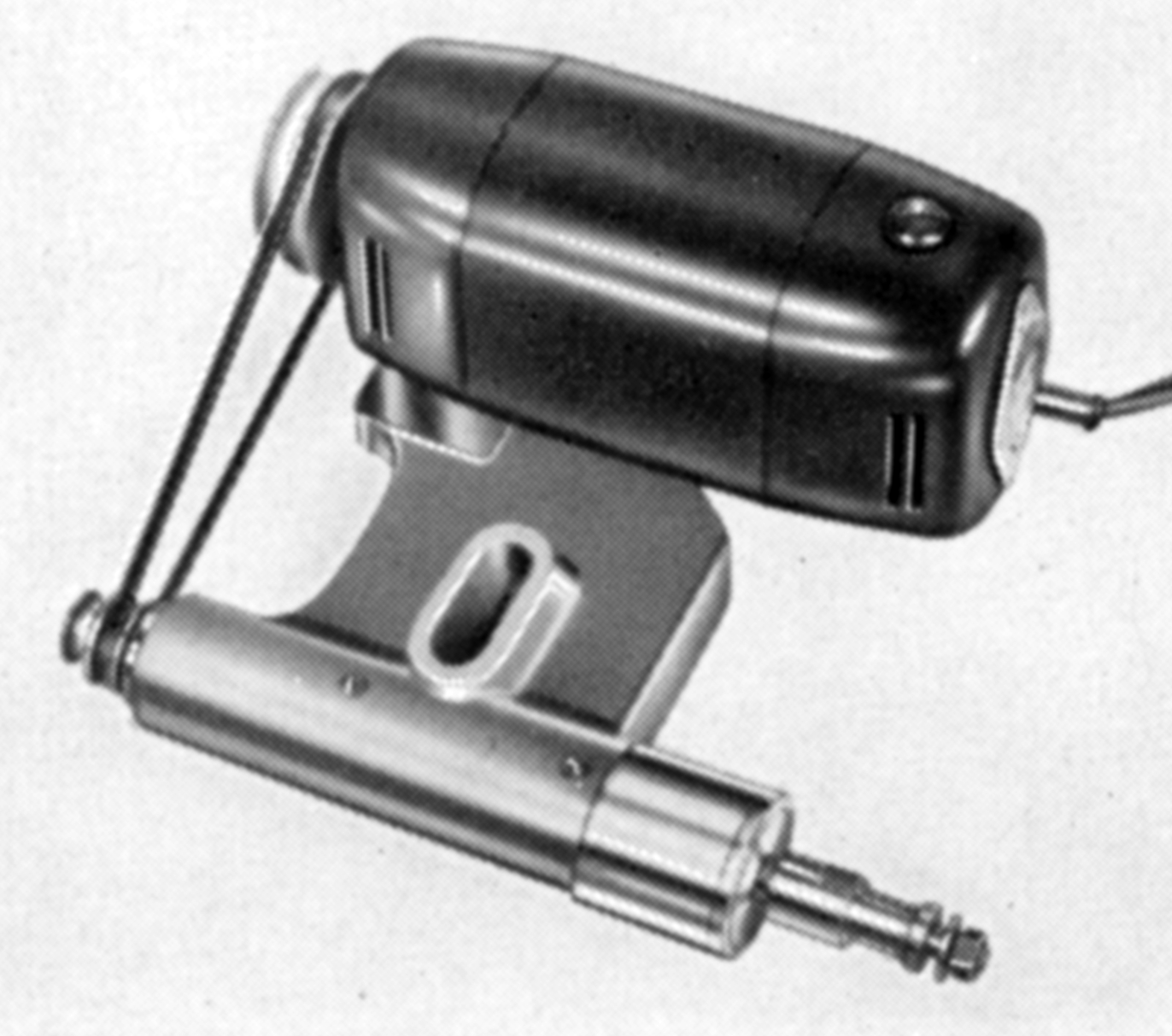

Screwcutting was by a generously large set of twenty changewheels, the drive passing through a tumble-reverse mechanism and covered by a guard that lacked an inner plate - leaving the gear open to inquisitive fingers. Sadly, the rest of the lathe's mechanical specification is unknown, although it is certain that supplied with every new machine were just fixed and travelling steadies, an oil gun and a screwcutting chart. However, available at extra cost was a headstock mounted. 40 : 1 dividing attachment with three indexing plates; a 1/15th h.p. single-phase toolpost grinder; a self-contained milling attachment consisting of a vertical slide fitted with a 1/15th h.p. single-phase motor and a milling cutter arbor and a miniature quick-set toolpost, the block of which was 50 mm square and supplied with four tool holders. Also listed was an 85 mm diameter 3-jaw chuck, a set of four angle plates, ten collets, ten grinding tools for the toolpost grinder and a rotating tailstock centre with a set of small to large interchangeable cones.
Occupying a space 1000 mm deep and 1200 mm wide, the Mentor T.D.55 weighed around 105 kg.
Se disponi di un tornio Mentor di qualsiasi descrizione, catalogo o manuale di istruzioni, contattaci
If you have a Mentor lathe of any description, catalogues or instruction manuals, please do get in touch

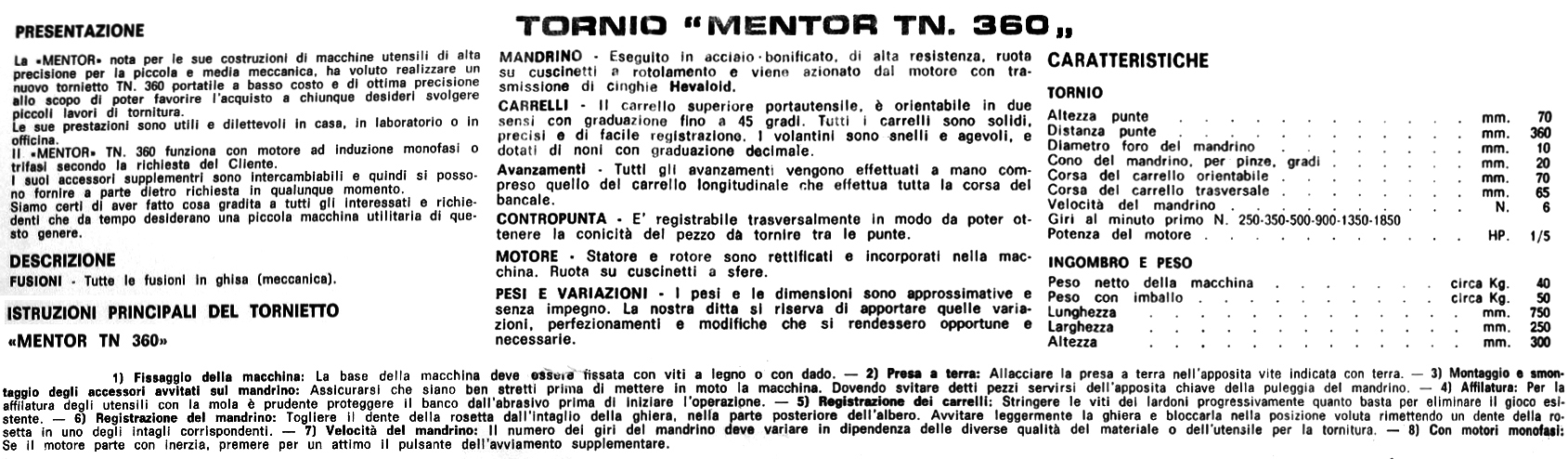

Translation of the Mentor Catalogue:
The mentor Company is known for its construction of high-precision machine tools for use by small and mediumsized workshops. In addition, we wanted to create a new, low-cost but excellent-quality and precision portable lathe, the T.N.360 to help those wishing to carry out small turning jobs. Hence, the performance of this lathe is both useful and delightful in the home workshop or the professional laboratory or workshop. The Mentor TN360 can be supplied, to the customer's choice, with wither a single or three-phase induction motor according to the customer's request.
Description
Castings
: all are in cast iron
Headstock spindle: this is made from heat-treated and hardened steel, rotates in rolling bearings and is driven by the motor using "hevaloid"belts.
Compound slide-rest assembly: the top slide (with toolpost) can be rotated either side of central through 45 degrees with engraved degree marks provided. Both slides are solidly built, precise in action and easy to adjust. Micrometer dials are provided, these being are slim, easy to turn and with metric graduations.
Feeds: all feeds are by hand, including advancing the carriage up and down the bed (there is no screwcutting)
Tailstock: can be set over for the turning of slight tapers between centres
Electric Motor: this is built into the machine as a complete assembly
Weights and dimensions: these are approximate and without obligation. Our company reserves the right to make those changes, improvements and modifications that are deemed appropriate and necessary.
Technical Specification:
Centre height 70 mm
Distance between centres 360 mm
Spindle hole diameter 10 mm
Spindle nose machines to take collets with a 20 angle
Cross slide travel 70 mm
Top slide travel 65 mm
Spindle speeds: 250-350-500-900-1350-1850 r.p.m.
Electric motor: 1/5 h.p.
Net weight of the machine .about 40 Kg
Weight with packaging .about Kg 50
Length 750 mm
Width 250 mm
Height 300 mm
