Lathe Spindle Nose Fittings
American Long Taper
American Standard Type A-1, A-2, B-1, B-2, etc.
American Short Taper with Cam-lock Fitting Type D1

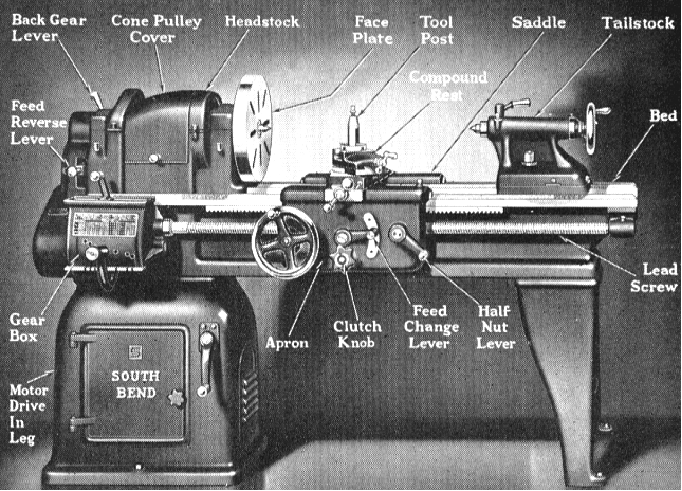

Parts Home Page

Screwcutting    Countershafts    Backgear    The Watchmaker's Lathe

Tumble Reverse   Quick-change Toolholders   Fitting a Chuck

Spindle Nose Fittings    More Names of Parts   Epicyclic Backgears

Stuck Chuck   Countershafts, Jackshafts & Spindle Speeds   Oiling

   Reading Microscopes, Bevel Protractors, Combination Squares
and using Calipers & Dividers, etc.

Be sure to click the hyperlinks above for a complete picture
of how a lathe and associated equipment functions




American Long Taper with Drive Key and Draw-nut Type L
Widely used on industrial-class lathes from the late 1930s until the 1960s.

The spindle nose is provided with a long but steep taper for centring and locating fittings, a key to provide positive location and a flanged nut for retention.
CLICK HERE FOR A PDF of Spindle Nose Fittings

American long-nose Taper Type L

American Standard Type A-1, A-2, B-1, B-2 etc. Short taper with bolt or stud fixing.
Commonly used on turret lathes, single-spindle automatics and larger industrial-class  ("Engine") lathes.
Type A-1: tapped holes on outer-bolt circle
Co and inner-bolt circle C1.
Type A-2: tapped holes on the outer-bolt circle Co but no holes on inner-bolt circle C1
Type B-1: drilled holes on outer-bolt circle Co and tapped holes on inner-bolt circle C1
Type B-2: drilled holes on outer-bolt circle Co but no holes on inner-bolt circle C1



American Short Taper Standard Type A-1, A-2, B-1, B-2
B-1, B-2 etc.



American Short Taper with Cam-lock Fitting Type D1
A replacement for the original American long-nose taper and widely used on many different sizes of lathe.
The different sizes are referred to as D1-3", D1-4", D1-5", etc. although some publications and parts lists have the figures are reversed as in 3"-D1 or simply list them, as in the cart below, as 3" (3-inch), 4" (4-inch) etc.
The spindle nose is provided with a short tapered flange of the same dimensions as the American A-1 Type but has in its face either 3 or 6 holes (for light and heavy-duty use respectively) into which the mounting studs on the back of a chuck or backplate can fit. Each stud is cut away in a semi-circle half-way along its length and an eccentric cross pin, turned by a standard chuck key, causes these to be drawn inwards until the pin goes over-centre and locks. The pins, being screwed into the back of the chuck, can be turned until the locking action is positive.

American Short Taper with Cam-lock Fitting Type D1

CLICK HERE FOR A PDF of Spindle Nose Fittings


British and ISO Standard Spindle Noses
