Aciera F4 Precision Universal Miller
F4 Page 2   F4 Page 3

Handbooks and Maintenance Manuals are available for the F4

Aciera Home   Aciera F1   Aciera F2   Aciera F3   Aciera F5   Aciera F12

Aciera F Series precision milling machines were eventually to be built in several versions: the first, in the 1930s was the F11 followed, in 1943, by the quite different and super-precision F12; after this, in the late 1940s, came the long-lived and very popular F1 and (rare) F2 - with both designed for clock, watch and instrument work. Larger machines were the more general-purpose F3, F4 and F5 models. In addition, by the early 1970s, a limited number of production variants were also being manufactured designated F1N, F1h, F1NC, F3EC and F5NC.
Built from the 1950s, first in a "rounded" style and then as a later "angular" version, the very expensive (though popular) F4 followed the usual design parameters for this specialised type as produced by a number of other makers, notably in Europe, but also elsewhere*. The aim was to provide a versatile, adaptable model that could be pressed into service to solve as wide a variety of machining problems as possible. In order to achieve this, the top of the main column was fitted with a dovetail slide able to accept a number of different heads all of which could be driven backwards and forwards by a handwheel, working through helical gears, to provide an in/out feed of some 7 inches (175 mm). Heads included one to drive a horizontal arbor; a standard vertical driven from the horizontal spindle; a simple high-speed vertical; a standard high-speed vertical and a slotting attachment. By combining the heads with a choice of three T-slotted tables - vertical, plain horizontal and compound tilting and swivelling - a skilled technician was seldom defeated in his attempts to produce the most complex of milled and drilled components - and all to a very high standard of accuracy. Unlike similar machines from other manufacturers that had a large T-slotted vertical table permanently mounted in place of a conventional knee, on the Aciera a wide, flat vertical surface was provided (the makers referred to it as the "apron") with the tables and other fittings located by being hooked over hand-scraped V-ways at the top and bottom. At the lower edge, to lock the assembly in place, a pair of bolts passed through the casting to tighten a loose gib block. Although this system might appear to have been less versatile than a bolt-on, T-slotted assembly, it did ensure that everything lined up perfectly and required no remedial action (tapping the table and snugging up nuts) to get level. . In addition, to obtain extra capacity, the table could be positioned at any point on the apron - and to within an accuracy of 0.001" when moved from extreme left to extreme right.
Built on an almost square, heavy cast-iron base 690 mm wide and 725 mm deep the F4 was driven by an enclosed 2.5 h.p. 1400 r.p.m. motor powering a variable-speed drive system by expanding and contracting pulleys. After the belt stage the drive passed to a speed-change gearbox containing hardened and ground gears, running on ball-bearing shafts and lubricated by splash, and  from there to an upper shaft from where it could be picked up by the horizontal milling spindle unit, direct-drive vertical head (non-high-speed type) or the slotting head.
Continued below:

Continued:
Heads and Head Fittings
The hardened and ground horizontal spindle had a speed range from 50 to 2000 r.p.m. whilst the vertical head, which contained its own two-speed gearbox was able to span a more useful 50 to 3400 r.p.m. Both horizontal and vertical heads employed selected, adjustable high-precision taper-roller bearings - an adjustable double-row taper roller at the front and a conical roller and thrust bearing at the rear - and were fitted as standard with a No. 30 ISO taper spindle nose. However, the option was offered an ISO-30-1/2", ISO-40-M16 or ISO-405/8" for the vertical and an ISO 40 for the horizontal. Whilst the vertical head was normally equipped with a worm-and-wheel fine-down-feed mechanism, if required, at extra cost (of course) a quick-action lever feed could be fitted to compliment it, both systems having a maximum travel of 2.375 inches (60 mm). The head could be inclined through 90° in either direction from vertical; the spindle axis brought to within 3.125 inches of the column's inner face or moved as far away as 10 inches (255 mm). The maximum distance between the surface of the fixed angular table and spindle nose was 14.25 inches (360 mm) and the minimum 0 inches. However, when the universal table was fitted, the maximum clearance was reduced to 11.375 inches (290 mm). An important accessory head, that mounted onto the nose of the vertical head, was the
Universal Milling Head. This turned the drive through 90° so that it could be employed for spiral milling and other specialised purposes.
Two other vertical heads were available, both independently powered but of different specification. The
Simple High-speed Vertical Head had a 0.5 h.p. 2,800 r.p.m. motor that gave four V-belt driven speeds of 1000, 2000, 4000 and 6000 r.p.m. and a quill moved by a quick-action lever through a rather short 2.375 inches (60 mm) of travel. The spindle nose accepted double-taper ES-32 collets (or ISO30) that held cutters by friction only, there being no positive location by thread or collet chuck. A more robust unit was the High-speed Vertical Head; this used a two-speed, 1400/2800 r.p.m. 0.75 h.p. motor that provided eight speeds of 500, 700, 1000, 1400, 2000, 3000, 4000 and 6000 r.p.m. The spindle, fitted with an ISO-30-M12 or ISO-30-1/2" nose, was able to take a collet chuck, had 3.125 inches of travel and was fitted with both a quick-action lever and fine-feed handwheel. Both heads could be swivelled but, whilst the Simple Type with its smaller motor and greater clearance from the overarm could be turned through 60° in each direction, the standard version was restricted to 45° - though when advanced forwards could be swung through a full 90°.
For horizontal milling a conventional overarm and arbor were used - but even here Aciera ensured maximum rigidity by forming the arm and the (normally detachable) drop bracket from one casting.
Continued below:

Continued:
Tables and Table Drive

Table drive was under the control of a separate 1 h.p. motor mounted in the right-hand section of the stand and pointing downwards. The system was complex, with the motor driving a train of gears that could be used to provide "rapids" in any direction (at the rate of 59"/1500 mm per minute) or take the drive to a variable-speed system using expanding and contracting pulleys. With the addition of fixed gear ratios, a range of feeds horizontally and vertically was provided from 0.5" to 14" (10 to 360 mm) per minute. Unlike the ingenious joystick control on the competing Deckel FP1, the Aciera used simple and conveniently positioned levers to engage the feeds, that for vertical being next to the manual-elevation handwheel and for horizontal by the longitudinal handwheel at the right-hand end of the table. Feed rates were varied by a large handwheel on the face of the stand, with the fixed-ratio gear selector control below and to its right. The feed screws were all of large diameter, precision ground in hardened steel for the best possible accuracy and ran though large bronze nuts. To give maximum help to the operator, exceptionally large, finely engraved satin-chrome finish micrometer dials were fitted, complimented, on each axis, by built-in precision steel rulers and adjustable stops. Although digital read-outs had been available for general use since the early 1970s, the F4 was still offered with the facility to mount ground gauge blocks, dial indicators,
Trav-a-Dial readers and Heidenhain optical measuring equipment. The optical readers were fitted in place of the dial indicators with the position being read from a combination of a magnified image of a precision ruler marked in mm and a direct-reading drum graduated in intervals of 0.01 mm. However, whilst all these devices were highly accurate they were far slower to use than a DRO - and few late-type F4s will still have them fitted. Horizontally table travel was 16" (400 mm), vertical 18" (450 mm) and the head could be moved in and out through 7.5" (190 mm). However, because the accessory various tables could be slid left and right along the vertical face of the "knee", the total horizontal travel that could be achieved was 800 mm.
Vital in exploiting the full versatility of the F4 was the 146 lbs (66 kg)
Universal Table: with five DIN 650 12 mm wide T-slots running down its 23.5-inch (600 mm) length the 10-inch (250 mm) wide table could be pivoted left or right through 15° from central and tilted backwards or forwards through 30° from horizontal. Although a finely-engineered piece of equipment it could not, because of the numerous clamping surfaces, take heavy cuts, and patience was required in its use. For ordinary work an alterative fitting, the 31.5" x 10" (800 mm x 250 mm) Fixed Angular Table was available. With the same number and spacing of T-slots as the Universal this 170-lb (77 kg) unit was far more rigid and able to resist the cutting forces of larger diameter cutters and faster feeds. For mounting other accessories, a 46 lb (21 kg) 15.75" x 8" Vertical Plate with eight T-slots was provided - this being especially useful when fitted with various combinations of rotary table, dividing heads and special adaptors.
Continued below:

Continued:
Accessories

A wide range of other extras was produced, for the F4, many identical to those used on the F3 and F5 and capable of being used in various combination. Three versions of the 4.3125" (110 mm) centre height
Universal Dividing Head were listed: the standard unit, with a graduated drum for direct dividing and indirect by a worm gear and dividing plates; a model fitted with a Direct Dividing Device where a division could be obtained by a single movement of a lever that simultaneously unlatched, selected and indexed the setting - and a further development of the latter model that included a lever-operated collet closer. All types, with the exception of the lever version with its ISO-40 spindle and Schaublin Type 20 collets, had the option of four nose fittings: ISO-30-M12, ISO-30-1/2", ISO-40-M16 or ISO-40-5/8". Two tailstocks could be used with the dividing head: a plain type with a No. 2 Morse taper, a fine-feed travel of 0.75" and one that, using the same basic components, was fitted with a 22 mm travel quill and a quick-clamping mechanism.
A more complex dividing head was also available - the
Universal Inclinable. With the same range of nose fittings as the standard head, this 4-inch (100 mm) centre height version had a body that could be rotated from horizontal to vertical. A 24-hole indexing plate was fitted as part of the standard specification, as was a set of three indexing plates. Another option was a power-feed unit that provided a spiral indexing facility (used in conjunction with the Universal Milling Head). This employed a train of gears contained in a cast box with machined-in T-slots with a drive taken from the table's horizontal feed shaft - the gear set comprising wheels of: 24, 24, 28, 32, 40, 44, 48, 56, 64, 72, 86 and 100t.
For simple dividing the
Indexing Fixture was available; this was, in effect, an angle plate, able to be mounted horizontally or vertically, fitted with a 3-jaw chuck on a rotary base drilled with a set of twelve indexing holes.
Several rotary tables were available; the most commonly was the
Universa1, an 11-inch (280 mm) diameter, 4-inch (100 mm) deep unit fitted with a dividing plate (three were provided) and four radial T-slots to DIN 650 and 12 mm wide. The worm drive provided a rotation of 4° for each revolution of the handle.
A very much more complex and versatile model was the
Co-ordinate Rotary Table: this beautifully-made and heavy unit (176 lbs/80 kg) consisted of a rotary table, with worm drive plus and indexing-plate facility, mounted on an angle plate for direct fixing to the F4's vertical table. Integral with the rotary element was a compound slide rest that carried a 11.75" x  8.625" (300 x 220 mm) table with three T-slots. X and Y feeds were both 4.75" (120 mm) a travel that, although limited, was sufficient to allow the precise rectangular and polar positioning of small workpieces in relation to the spindle axis.
For small jobs that needed the facility to be rotated and offset in just one direction, the
Co-ordinate attachment was available. Built on a 2.375-inch (60 mm) travel slideway, the 4.375-inch (110 mm) rotary table had indexing through worm-and-wheel control only.
When buying a complex, finely-made machine such as the F4 mechanical condition is paramount; no spares are available and any replacement parts have to be made as one-offs. Although today a basic but serviceable late-model example can be purchased in the UK for an amount roughly equal to a month's average salary - a tiny fraction of its original price - but a near-perfect, lightly-used example complete with a good number of the more desirable accessories might command four-times as much. Whilst earlier "round style" model is worth a little less (and much harder to find in perfect condition) this version might represent much better value for money if the budget is tight..
*Proof of the type's success - the genus
Precision Universal Milling Machine - is evident from the number of similar machines made in various countries including:
Austria: Emco Model F3
Belgium: S.A.B.C.A. Model JRC-2
Czechoslovakia: TOS Model FN22, 32 & 40 Optic
Spain: Metba Models MB-0, MB-1, MB-2, MB-3 and MB-4)
England: Alexander "Master Toolmaker" and the Ajax "00", an import of uncertain origin.
France (?): Perron Montier
Germany: by several companies including: Macmon Models M-100 & M-200 (though these were actually manufactured by Prvomajska); Maho (many models over several decades); Thiel Models 58, 158 and 159; Hermle Models UWF-700 and UWF-700-PH; Rumag Models RW-416 and RW-416-VG; SHW (Schwabische Huttenwerke) Models UF1, UF2 and UF3; Hahn & Kolb with their pre-WW2 Variomat model and Wemas with their Type WMS.
Italy: C.B.Ferrari Models M1R & M2R; Bandini Model FA-1/CB and badged as Fragola (agents, with a version of the Spanish Meteba).
Japan: Riken Models RTM2 and RTM3
Poland: Fabryka Obrabiarek Precyzyinych as the "Avia"£ and "Polamco" Models FNC25, FND-25 and FND-32
Russia: as the "Stankoimport" 676
Switzerland: Aciera Models F1, F2, F3, F4 and F5; Schaublin Model 13; Mikron Models WF2/3S, WF3S, WF-3-DCM & WF-2/3-DCM; Christen Types U-O and U-1 and Hispano-Suiza S.A. Model HSS-143.
The former Yugoslavia: Prvomajska (in Zagreb with Models ALG-100 and ALG200); Sinn Models MS2D & MS4D; Ruhla and "Comet" Model X8130, imported to the UK in the 1970s by TI Comet.
At least five Chinese versions have also been made, including one from the Beijing Instrument Machine Tool Works. A number of the "clones" merely followed the general Thiel/Maho/Deckel concept whilst others, like Bandini and Christen, borrowed heavily from Deckel and even had parts that were interchangeable. Should you come across any of these makes and models all will provide "The Deckel Experience" - though you must bear in mind that spares are unlikely to be available and, being complex, finely-made mechanisms, they can be difficult and expensive to repair..

On the Aciera a wide, flat vertical surface was provided to mount tables and other fittings.

For ordinary work the 31.5" x 10" (800 mm x 250 mm) Fixed Angular Table was available. With the same number and spacing of T-slots as the Universal this 170-lb (77 kg) unit was far more rigid and able to resist the cutting forces of larger diameter cutters and faster feeds.

An important accessory head, that mounted onto the nose of the vertical head, was the Universal Milling Head. This turned the drive through 90° so that it could be employed for spiral milling and other specialised purposes.


Standard overarm (with rigid, cast-in drop bracket) and horizontal cutter arbor

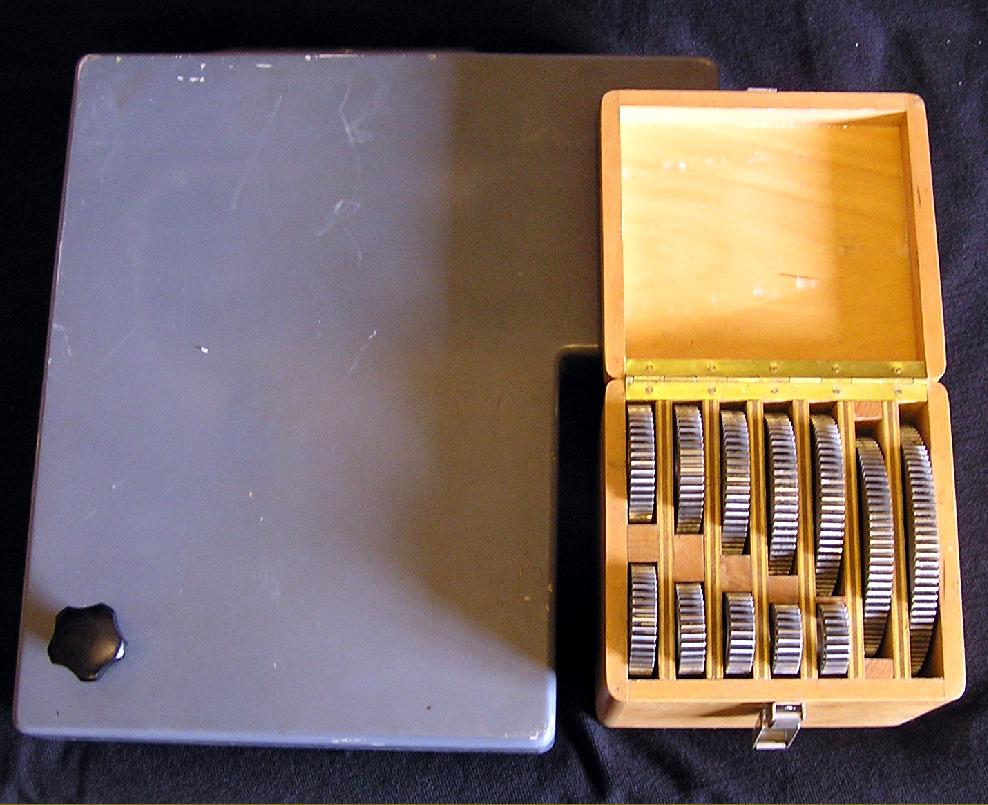

Changewheels and bracket assembly that connected the table-feed screw to the spiral milling attachment

Spiral milling attachment end cover and changewheels

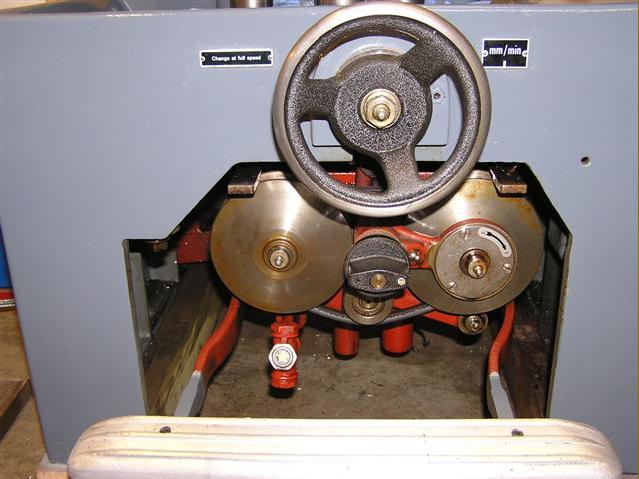

Spindle-speed variator--lower pulley set

Variator for table power feeds. In this machine the drive motor is horizontal
