Mondiale "Simplex", "Accura Simplex"
and "Standard" Lathes
Mondial and Simplex Manuals are available from store.lathes.co.uk

Mondiale Home Page   Mondiale Simplex Lathes   Celtic 12
Celtic 14   Celtic 17   Celtic 20   Mk.2 Celtic Lathes


Although not as well known as some manufacturers, by the late 1950s Mondial S.A. Constructions Mechaniques of Vilvorde-Bruxelles in Belgium had sold over 30,000 lathes. The examples shown on this and the next page were manufactured during the 1940s and early 1950s and marketed using the "Simplex",  "Accura Simplex" and "Standard" brand names. Although at the bottom of Mondial's range, they were still well-made, V-bed machines, constructed to Salmon and Schlesinger limits, and offered in two sizes with swings of 10.25 inches and 14 inches; the smaller model was built in two bed lengths with the 'Type JS' offering 19 5/8" between centres and the 'Type KS' 31 1/2". The lathe was very heavily built for a 10-inch machine, with a construction at least as massive as a Harrison L5A although, unlike that versatile machine, no gap bed was offered. The cast-iron stand held a swinging countershaft assembly with an over-centre locking device; a two-speed motor - with 0.75 hp at 1500 rpm and 1.3 hp at 3000 rpm - drove the countershaft via a V belt - with a flat-belt final drive to a 4-step headstock pulley; a total of 16 speeds was available: in backgear these were: 50, 72, 98, 108, 145, 160, 216 and 320 rpm and in open drive: 245, 360, 490, 540, 725, 800, 1080 and 1600 rpm. The 11/32" bore, No. 4 Morse taper headstock spindle (with a nose thread of 45 mm diameter and 3 mm pitch) ran in Timken taper roller bearings.
Fitted with a pumped oil supply system, the double-walled apron used Mondial's unique system of a vertical power shaft, with helical gears, to provide an extra-smooth drive. The feeds were engaged and selected by a single quadrant-type lever on the face of the apron - a convenient system, but one which, due to loading pressures, mitigated against an instant withdrawal of the feed; as a safety feature an interlock was provided to guard against the alternative feed being accidentally selected as the lever was moved out of its engaged position and swung into neutral.
Able to generate 43 English threads from 3 to 80 t.p.i with one setting of changewheels, the Norton-type sliding-gear screwcutting and feeds gearbox could also mount three sets of gears to allow an additional 20 metric threads to be generated. The longitudinal (sliding) feeds ranged from a slow rate of 0.0016"  to 0.048" per revolution of the spindle and the transverse (surfacing) feeds from 0.0008" to 0.024".
With, for the size of the lathe, an inadequate No. 2 Morse taper spindle, the set-over tailstock was clamped to the bed by a central nut - the loose spanner for which would either have been lost or hidden by an apprentice on the day after the machine's installation.
Laid out along very similar lines to its smaller brothers, the 14-inch model used an underdrive, flat-belt countershaft unit and could be had with  20, 30, 40 or 60 inches between centres - and with the swing increased to 16-inches by packing blocks to special order.
Later Mondial Simplex lathes of the 1950s were recognisable by their squared-off headstock, tailstock with an angled spindle drive and the fitting of a variable drive system inside the left-hand cabinet plinth with, in some cases, final drive to the spindle by a duplex chain. If you have one of these machines, or any literature about them, the writer would be pleased to hear from you..

Simplex 10-inch swing, 16-speed underdrive lathe of the early 1950s with screwcutting gearbox.

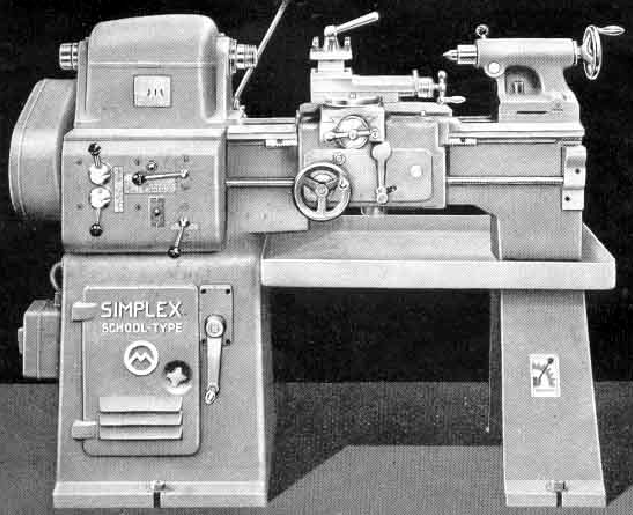

Special short-bed 14-inch swing by 20 inches between centres model "created on the request of technical schools for their first year of apprenticeship" . The lathe had a simplified screwcutting arrangement and lacked the separate powershaft for the power sliding and surfacing fitted to the more expensive models - the feeds were driven instead from the slotted leadscrew.

The largest Simplex Model - the 14-inch


Mondial Simplex branded (on the easily-changed door) as a "Standard"

Above: the double-walled apron was fitted with a pumped oil supply system and used Mondial's unique system of a vertical power shaft with helical gears to provide an extra-smooth drive. The feeds were engaged and selected by a single lever - a convenient system, but one which usually, due to loading pressures, mitigates against an instant withdrawal of the feed; as a safety features, an interlock was provided to guard against the alternative feed being accidentally selected as the lever was forced out of its engaged position and moved into neutral.

Smooth driving, flat-belt headstock of the 10-inch lathe which, by the 1950s, was beginning to appear an increasingly old fashioned design - if as effective as ever in use. The wisdom of cutting away the front wall of the headstock to locate the belt cover must be questioned.

Simple apron controls with a single lever to select and engage the power sliding and surfacing feeds.

A Mondiale leadscrew  being ground .

A robust barrel clamp was fitted to the tailstock - but the main clamping bolt had a nut which required a loose spanner to tighten it ..

The gib strips in both the top and cross slide were of the proper tapered type,

Simplex from the 1950s with "modernised" styling

Variable-speed drive Simplex with final drive to the spindle by a a duplex chain

"Accura" Simplex - again, the name is on the easily-changed door
