South Bend 9-inch "Workshop" Lathe
Stands and Drive Systems

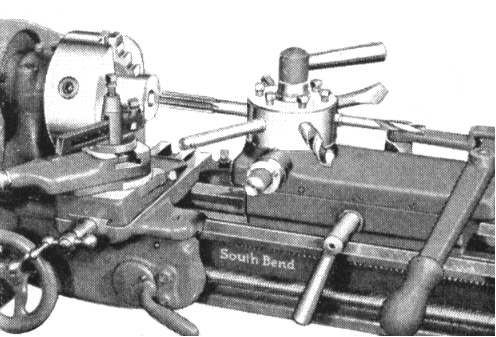

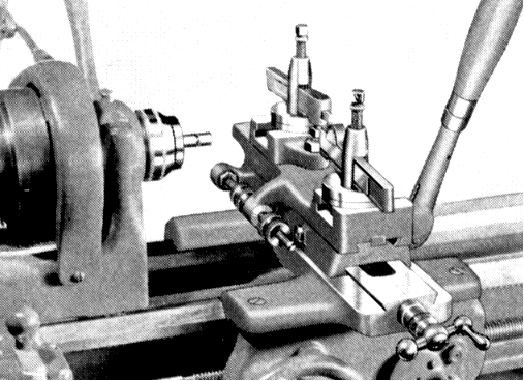

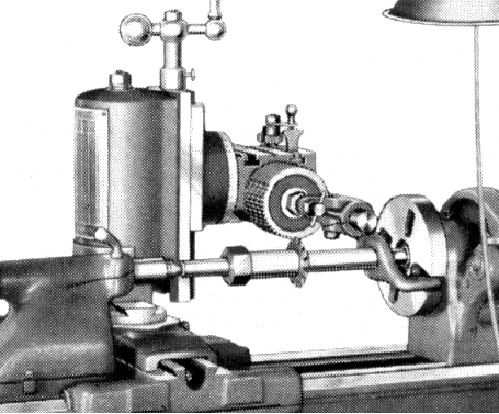

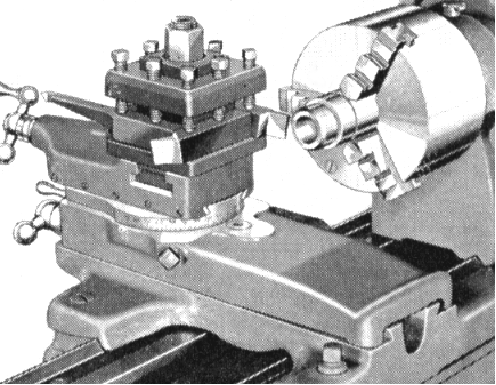

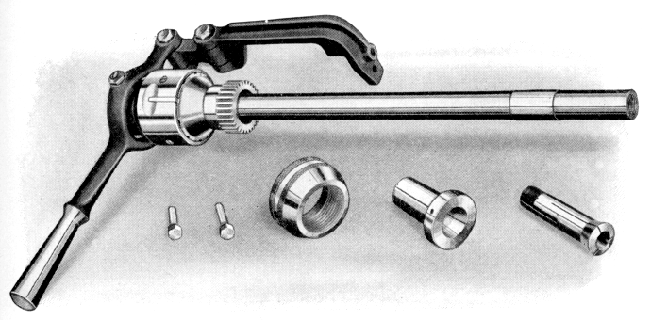

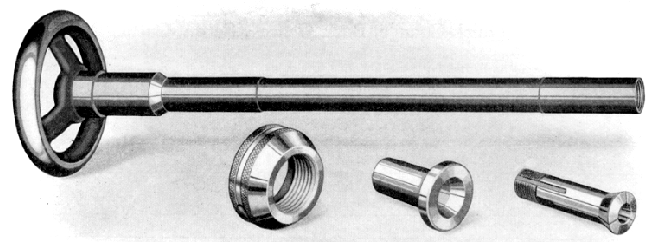

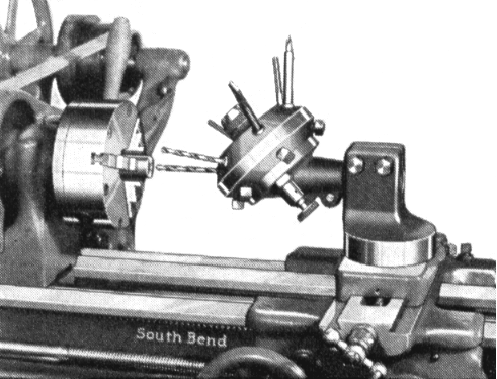

Stands & Drive Systems    Headstock Details    Carriage Assembly    Screwcutting    Accessories
Original 1934 9-inch Model 5
9-Inch Home Page    South Bend Home Page
South Bend 9-inch Clones   In the Factory

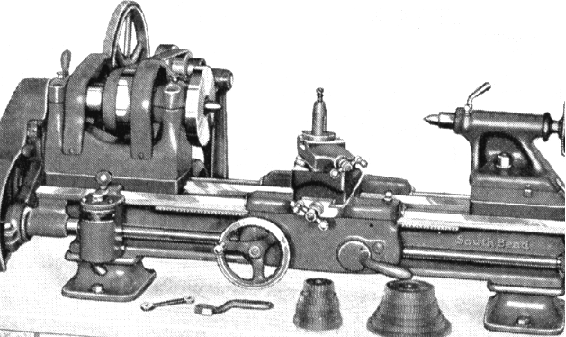

During the first two years of production the "Workshop" lathe was sold as either a bench unit with a separate but self-contained countershaft drive - or fitted to cast iron legs, in which case the drive system had to be remotely mounted on the wall or ceiling.
During 1937 South bend introduced the first of the Workshop "Underdrive" models; these were fitted to well-built wooden stands and incorporated a version of the drive system already in use on larger models in the range. In order to accommodate the drive from underneath the headstock casting was completely new with wide, cast-in tunnels to allow the belt to pass directly downwards. The bed and its headstock-end supporting foot were cast as one and a deep, hinged guard provided to cover the belt. In the same year the cast-iron "leg" stands were improved by the addition of a tall, floor-mounted countershaft unit which allowed the machine independence from the tyranny of wall and ceiling-mounted countershafts.
By 1947 the first of the more modern-looking underdrive 9-inch models had been introduced; fitted to neat, self-contained sheet-metal cabinet stands the design then evolved, with very few alterations, into the Light 10 Model that remained in production as South Bend's standard small lathe until 2002 - though batches of these late-models examples were made by Hercus in Australia, rather than in the USA.

Typical South Bend countershaft assembly. The electric-motor shaft carried a V pulley with the V belt driving onto a large-diameter, narrow, flat pulley. This rather unusual arrangement (of a V belt driving on a flat pulley)  worked very well even if, to modern eyes at least, it appears illogical. The final drive to the headstock was either by a 3-step flat belt or, less commonly, a 4-step V-belt with hardened headstock spindle.
The countershaft was arranged to hinge about its base and an over-centre tensioning device was fitted - the long slotted adjuster for which can be seen above the motor between the upper and lower belt run.
An optional 2-step pulley set was available that, with a powerful-enough motor, doubled the number of spindle speeds to 12.

Left and below: the first underdrive system for the 9-inch "Workshop" Lathe was designed to be incorporated within a wooden bench which could either be supplied by the factory - or built by the owner to a set of plans provided free with every lathe (if any reader has a set of these plans the author would very much like to hear from them).
Note the modified headstock and cover; the bed and its left-hand mounting foot were cast in one piece.
Where a 2-step pulley set was used on the motor and countershaft (to double the number of speeds) the idea of using a V belt running on a flat pulley made sense - there was no need to provide any method of slackening the belt before it could be moved - it simply had to be rolled off one countershaft pulley, slipped into the other V pulley on the motor and rolled back onto the other countershaft pulley.
The final, rather more modern-looking version of the underdrive arrangement can be seen here

Underdrive countershaft unit for the 9-Inch "Workshop" Lathe fitted with final drive by V-belt.

9-Inch Workshop Lathes on cast-iron stands had previously required a separate wall or ceiling-mounted countershaft unit. The floor-mounted unit, although a clumsy design,  allowed complete flexibility in deciding where in the workshop to place the lathe.

End view of the floor-mounted countershaft unit.
