Transfer gears connecting powershaft to leadscrew

Transfer gears cover in cast iron

End face of lathe bed that bolted to the machine's main column

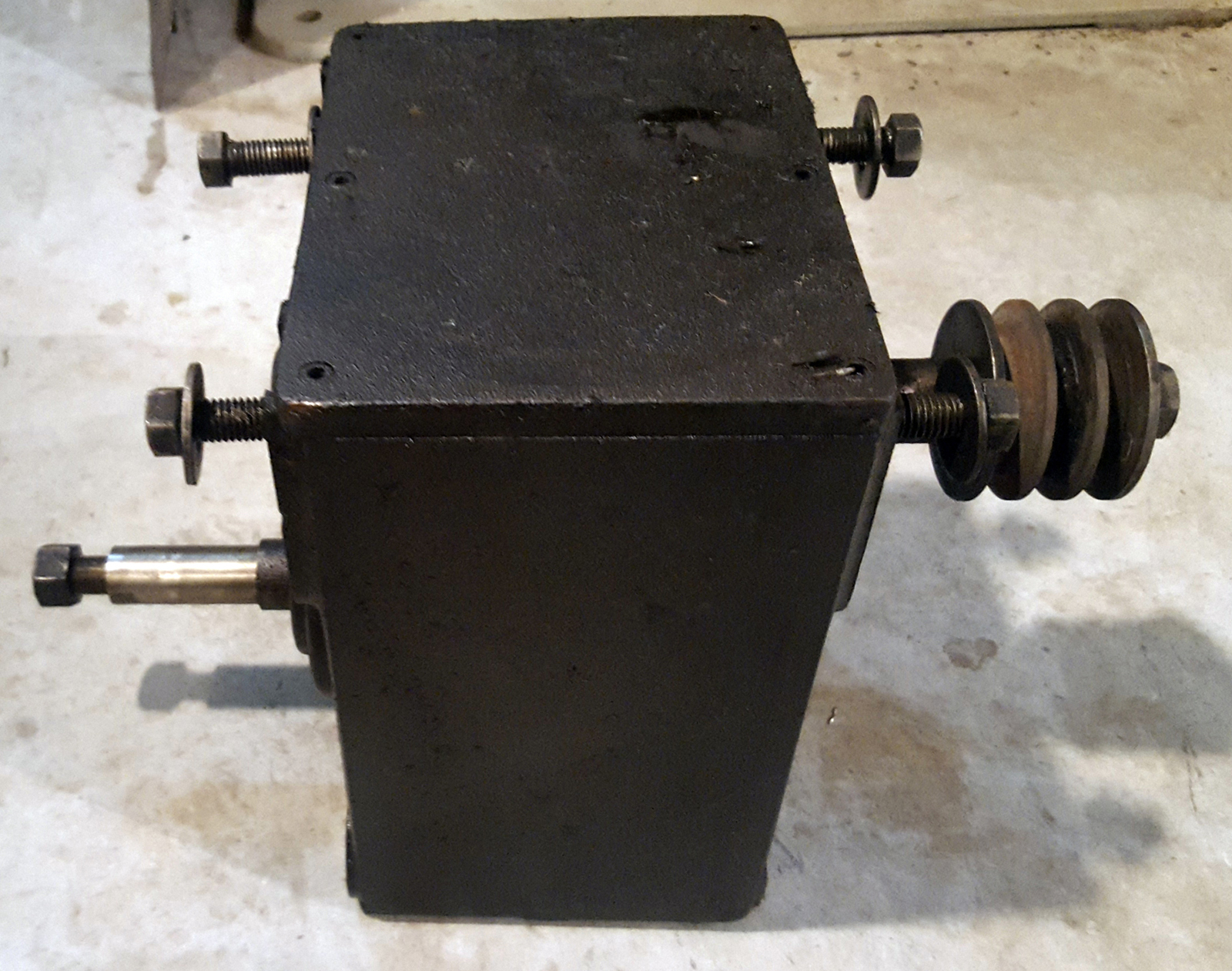

Main drive gearbox held in the base of the main column - drive, via three V-belts, came from a motor mounted on an adjustable plate

Motor mounting plate

The casting that supported the horizontal milling machine overarm and milling-head was located by dowels
