Paul Clausing started his machine-tool business in Lillian and Keota Streets in the town of Ottumwa, Iowa, USA in 1931 and was joined a year later by his brother, Otto. Their early products included a compound slide rest, manufactured for the Duro company, and various other lathe and machine tool accessories. A small wood-turning lathe was also offered, marketed by Sears,Roebuck, but sales, in a time of severe recession, were few and far between. However, by 1935, sufficient resources had been accumulated to begin the design of a metal turning lathe, and by 1937 the first extension to the original (and tiny) factory became necessary. A further extension was added in 1940 - which anticipated the vast increase in production that would be required by the war effort -  and finally a completely new factory was erected in 1946, at 235 Richmond Street, on reclaimed land along the banks of the Des Moines River.
The company's range of 12 inch (6 inch centre height) V-bed lathes were built in two distinct Series, the 100 and 200; the earliest sales literature so far found for the 100 Series is marked "1938 Catalog" and so, presumably, was printed in 1937; production of the lathe had started in 1936 with the first being shipped on June 8th. The 200 Series was an entirely new design with production commencing very late in 1948, with the first delivery dispatched on March 31st., 1949. The original 100 Series lathe went through a series of rather rapid changes and was produced in three versions that we shall call - unofficially, and for identification purposes only - Mk. 1, Mk. 2 and Mk. 3.

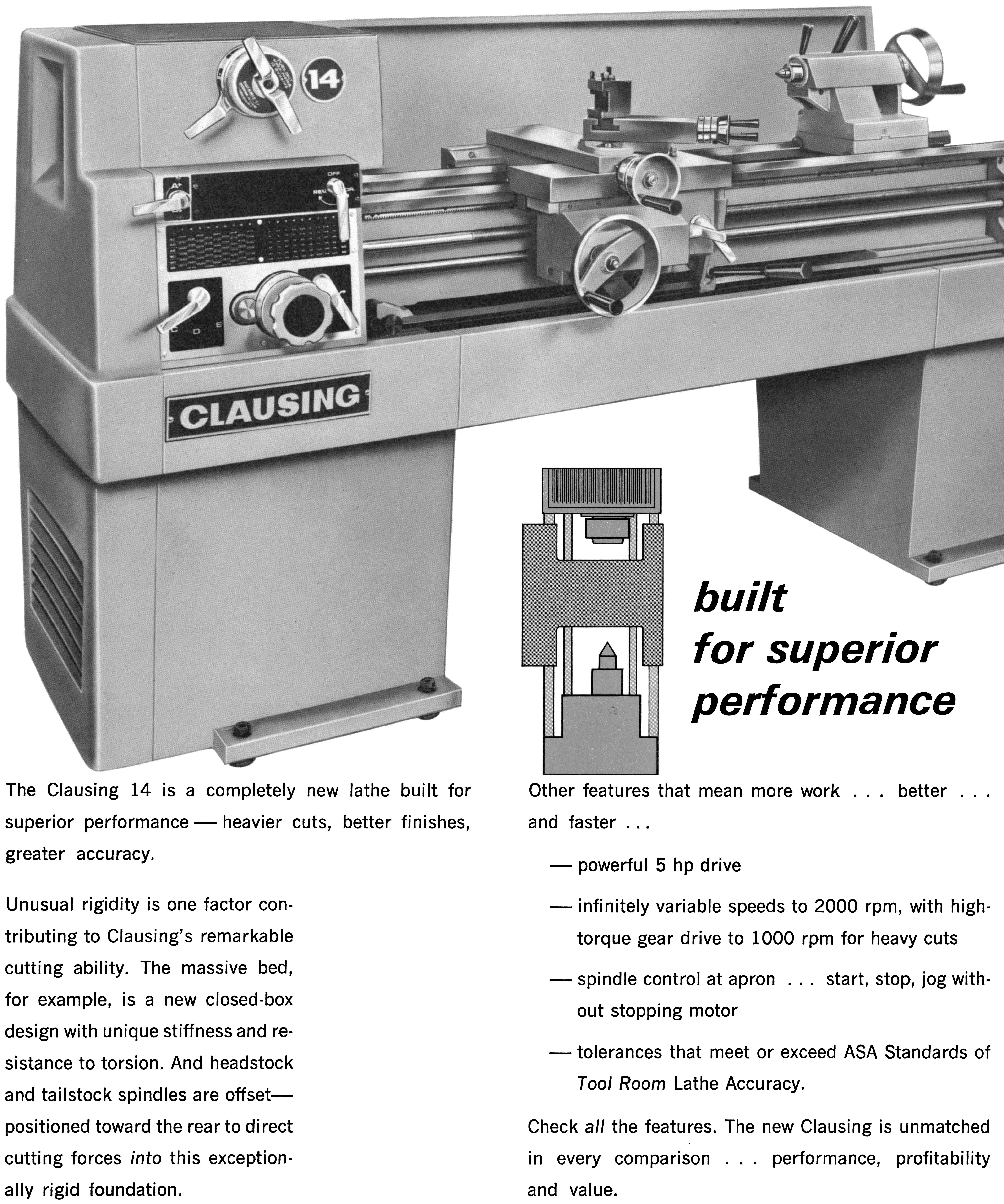

In 1950 the Atlas Corporation purchased Clausing  - and badged both the 100 and 200 Models with their name and changed the model numbers to 4800 and 6300 respectively; however, this caused some confusion with customers, who demanded that their Clausing lathes should be marked Clausing, and not Atlas. This entirely fair point was accepted by the company, who, after a few months, reverted (for a time) to the original name and Model designations; however, the damage had been done, and even today, as these older lathes are discovered and restored, those with an Atlas badge continue to puzzle new owners as to their origin. Finally, in 1969, the Atlas Company changed its name to Clausing Corp. to reflect the fact that the company wished to place greater emphasis on its involvement with larger, industrial-class machines.
Don Clausing, the son of Paul Clausing the company's founder, has recently made contact and written a fascinating account of the firm's growth and development from the early 1930s until 1950; the article and accompanying pictures can be seen here.
100 Series Mk. 1
The first models were obviously aimed at the amateur user and had, in some respects, a rather "minimal" appearance; they were, however, well designed, with good attention to detail, and decently built - especially in the region of the headstock where, as standard, the 0.75" bore spindle was supported on Timken Taper roller bearings. A special high-speed model, the "Dual", intended to be used for both metal and wood turning, was fitted with a free-running, grease-sealed ball-bearing countershaft and offered with the option of a low-friction ball-bearing main spindle - the front being a double-row deep-groove type, the rear a single-row. The very first Clausing lathe was located after the war by Paul Clausing, and displayed in the entrance to their new factory, built in 1946.
With the availability of power cross feed and a proper screwcutting gearbox (on the Mk. 2 version)  the specification of the new lathes quickly grew attractive enough gain the attention of professional workshops needing a compact but rugged machine - or one able to accommodate smaller jobs that would have tied up larger and more profitable lathes.
According to his son, Paul Clausing considered his main competitors in the 10-inch size category to be South Bend, Sheldon and, to some extent, Logan. However, the best-selling 10-inch lathe of the time was the mass-produced Atlas and the Clausing company took every opportunity to make this lathe appear less-well built than their own - although at the time, in the late 1930s, they were far too gentlemanly to actually mention competitors by name. The Clausing certainly had some advantages over the Atlas (which was also mass marketed under the Craftsman label by Sears, Roebuck) being made "entirely of iron and steel" and having "machine-cut gears"  - both guarded references to the fact that many small parts on the Atlas, as well as all its gears, handwheels and pulleys were made from "Zamak", a mixture of aluminium, magnesium, copper and zinc that was pressure injected into hardened-steel dies and a material whose qualities was viewed with suspicion by many engineers  The Clausing could also be had with a screwcutting gearbox, something not available for the Atlas until 1947 - though to be fair, a little difficulty with neighbors across the Pacific and Atlantic did obstruct development for a few years.
The lathe was supplied complete and almost ready to run, the self-contained countershaft (with its bunting-graphite oil-less bearings carried in self-aligning hangers) was fastened to the back of the headstock with the cast-iron headstock cover designed as part of the assembly - and so arranged that when lifted open the tension on the drive belt was relaxed. Unfortunately, there was no integral platform on which to mount the motor, that had to be bolted onto the bench directly underneath the countershaft. The basic lathe had three spindle speeds of 50, 73 and 134 rpm in backgear and 303, 437 and 801 in direct drive whilst the "Dual" - with its advertised ability to turn wood and plastic - had nine speeds of: 44,  73,  and 115 in backgear  and 260, 420,  680,  1225,  1960 and 3200 rpm in direct drive - achieved by using a two-step pulley drive from motor to countershaft. Three more speeds were, in practice, also available, but their use entailed engaging backgear on the higher-speed belt settings - an unwise and unnecessary thing to do.
The headstock was bolted to the bed at the front and secured with a clamp at the rear - in the  manner of the South Bend Heavy Ten - and fitted with a substantial backgear assembly with 5/8" wide gears positioned directly underneath the headstock spindle. A rather pleasing feature was an inner cover that securely guarded the large "bull wheel" on the spindle when the main cover was opened.
The compact mounting of the backgear was a deliberate attempt to engineer a headstock and countershaft assembly as short as possible from front to rear - without resorting to an ugly and unbalanced mass of pulleys mounted above the spindle line, or taking up an excessive amount of room front to back. For a 6-inch centre height lathe, capable of being bench mounted - and especially in comparison with a rear-drive 10-inch South Bend - it really was very compact and the drive system could, but for the remotely-mounted motor, almost be considered an ideal design.
The compromises designed into the compound slide rest were interesting; to get the cutting tool up to the correct height, yet maximise the swing over the saddle and cross slide, the latter two were made relatively thin and, to compensate, the top slide deepened in section and constructed with a circular boss on its base - that bolted to an identical boss on the cross slide. Unfortunately the resulting assembly looked rather tall and inelegant and to compensate - and counteract the increased leverage between the cutting tool and the cross slide ways - the cross slide was made a full 9 inches long. To imagine the lever effect, try exaggerating the conditions - and put the top slide on a three foot high post). The long cross slide, unlike the terribly short affairs found on so many other lathes (including the Atlas), also had the desirable effect of spreading wear from the slide's movements over nearly the full length of its ways  - and so helped to prevent the formation of a hollow in the middle section of its travel.
It is interesting to compare the Clausing's "top-slide-on-a-post" arrangement to that of a "no-compromise"  industrial lathe where, because it is assumed that it will be surrounded by many different sizes of lathes, all given jobs appropriate to their size and strength, the designer has no need to consider stretching its functionality to the limits. Instead, he can concentrate upon making it as rigid as possible by optimising the form of each component - and their relative sizes - to the best possible advantage within the design parameters and cost constraints he had been allocated. The Clausing, in comparison, would almost certainly have been the only lathe a private owner possessed, and making the most of its turning capacity in the way described above, whilst sacrificing something in the way of ultimate rigidity, was a thoughtful decision by the manufacturer.
The micrometer dials were far too small but, as hardly a small lathe existed at the time where they were not, this might possibly be excused - and at least the dial markings were engraved, not rolled in.
For screwcutting, a set of twelve hobbed-from-the-solid, half-inch wide, 16 pitch, 14.5 degree pressure-angle changewheels was provided - as well as the three gears (of which two were the largest available of 100 teeth each) fitted as standard to provide an ordinary feed to the carriage. Surprisingly, as delivered to the customer, these early lathes did not have the finest-possible feed set up - instead, the operator had to construct a compound set of changewheels from amongst those supplied.
Although the changewheels were guarded by a swing-open, cast-iron cover this, like the ones on contemporary South Bend lathes, had no form of retaining catch - whereas the ones produced by Atlas did.
The gears of 32 teeth and below were made of steel, the larger ones of cast iron; they drove, via a tumble reverse mechanism, to a 3/4-inch diameter, Acme-form, 8 tpi leadscrew. The tumble-reverse selector lever was fitted with a spring-loaded, plunger-type engagement pin that faced the operator - a design, incidentally, that Clausing claimed to have invented, except that they didn't, it probably being first conceived by the British engineer Nasmyth in the early 1800s.
The No. 2 Morse taper tailstock had a 1-inch diameter barrel with 3 inches of  travel - and graduations every 1/16th of an inch. Its general design was, however, disappointing; the main body was insubstantial and the barrel-locking clamp relied upon closing down a slot in the casting; fortunately, as a redeeming factor, it did have a useful, if rather awkward-to-operate, quick-action toggle clamp - positioned at the rear so that it would not tangle with the compound slide in close work.
The bed was provided with two V ways, one to guide the saddle, and one to align the tailstock. On both Mk. 1 and Mk. 2 models the beds were first rough milled and then stored for around a month for seasoning - a special shed being constructed in 1946 for this purpose; a further session of machining followed - with the final fitting work and finish applied by hand with scrapers. On the Mk. 3 the hand scraping of the bed - and unfortunately the beautiful mottled finish this produced - was superseded by surface grinding, the move probably forced on the company by a shortage of men skilled enough to undertake the task; hand scraping, however, continued to be employed in fitting the saddle to the bed.
100 Series Mk. 2
By 1940 several modifications, options and improvements had been introduced leading to what might be termed the "Mk. 2". The tailstock-end leadscrew hanger bearing was now held on with one rather than two bolts, the bed feet were lengthened, the shape of the end of the bed was changed and, more significantly, a screwcutting gearbox was offered for the first time. The box could generate 48 threads from 4 to 224 per inch and, unlike those fitted to some other similar-sized lathes, had the three independent controls of the traditional Norton quick-change design - a 3-position selector lever on top (marked A, B and C) a 2-position sliding gear under the changewheel cover (to select fine and screwcutting feeds) and an 8-position tumble lever on the front.
The carriage (which initially had been fitted with a hand-powered cross feed only) was already offered with the option of a "Simple" power cross feed apron; however, unlike the system offered on competitors' lathes of a similar price, this did not provide a sliding feed to the carriage - that could only be obtained by engaging - and wearing out - the leadscrew clasp nuts. With the introduction of a screwcutting gearbox a second more sophisticated "Automatic" apron (with a distinguishing 3-position selector lever on the front) became available; this much taller and deeper double-wall apron also drove the power sliding feed (the movement up and down the bed) leaving the leadscrew for screwcutting only. The improved apron (which was only available on lathes fitted with a screwcutting gearbox) was fitted with a simple but robust cone clutch, operated by turning a star-shaped knob on the front. The clutch protected the apron from damaging overloads but meant that (like many similar designs) there was no means of instantly disengaging the power feeds other than by unscrewing the knob - or unwisely trying to pull the selector lever into its neutral position whilst under load. The base of the apron, being enclosed, was used as an oil sump - the lubricant being splashed around the mechanism by the lower gears dipping into it.
A combined cone-clutch and brake unit, built into the 3-step V pulley on the countershaft and with its operating-lever pivot on the right-hand side of the headstock cover, became an option on all but the "Dual" lathe - where it was fitted as standard. To operate the clutch the lever was moved to the right - whilst to bring the (external-band) brake into play - and arrest the rotational progress of the 56 lb lump of cast iron bolted to the faceplate - it was pushed further to the right.
A significant detail improvement concerned the mechanism for locking and unlocking the large spindle-mounted backgear bull wheel to the adjacent belt pulley. Previously, this had been the usual sort of spring-loaded pin, but was redesigned to produce a completely backlash-free connection, a most unusual state of affairs with any quick-release mechanism. The system was based on a split ring, fastened to the bull wheel, and machined to be a close but clear fit within a drum that was formed on the inside of the largest diameter of the cone pulley; the ring was expanded to grip the inside cone pulley - and positively locked - by a cam connected to a knurled thumb wheel.
100 Series Mk. 3
By 1944 the "Mk. 3" had made its appearance, its main identifying features being a completely new gearbox (with the gear-selector holes arranged in a distinctive "V" across the front, together with an usual and distinctive paddle-like design of engagement lever) - and a pin release for the headstock cover instead of a large toggle lever.
Mechanically the headstock was almost unchanged, the spindle having the same bore and No. 3 Morse taper - but the previous safety feature of a separate cover over the large backgear bull wheel (under the main belt cover) had, unfortunately, disappeared. As an option, the spindle could now be ordered with a hardened nose - ideal if production work involving many changes of fitting was envisaged.
Spindle speeds were slightly reduced, starting, on the ordinary model, at a more beginner-friendly 42 instead of 50 rpm and continuing through 73 and 120 rpm in backgear and 255, 437 and reaching 730  - instead of 801 rpm - in direct drive. An alternative range of speeds went from 50 through 73, 134, 250, 437 to 700 rpm.
The "Dual" model continued in production and kept its nine speeds but, like those of the standard version, were all reduced by between 16 and 25 per cent with the top speed, unfortunately, falling from 3200 rpm to 2400 rpm - still fast, but hardly quick enough for its claimed wood-turning role.
The "V-front" gearbox was entirely new, much more strongly built and used ball bearings throughout - however, it generated the same 48 pitches and feeds as before and used exactly the same (traditional Norton) method of selection.
To slacken and so move the drive belt the entire cast-iron top cover still hinged upwards and backwards, but the retaining mechanism was changed from an over-centre toggle to a neat, spring-loaded, dome-headed pin.
The apron was still produced in two versions, 'Simplified' and 'Automatic'. Whilst the former retained the single star-shaped knob that was screwed in to engage power-cross feed - and used the leadscrew thread to provide a sliding feed along the bed - the automatic apron was considerably modified with the 3-position selector lever replaced by a button. Pushing the button in selected power 'sliding', pulling it out power 'surfacing'; however, the drive was still through the same type of clutch as before - with no way of instantly disengaging the feed under power other than by wrestling with the selector button and hoping that, when it did come out of drive, the button did not overshoot its neutral position and select the other feed.
An interesting development of the Clausing 100 Series Mk. 3 lathe was sold through Metropolitan Distribution Ltd. of Truro, England under the name "Fortis" and "Fortis Imperial" and possibly, in addition, branded as the "Broadway" - though the latter is known to have carried standard Clausing badges as well and was probably just an ordinary import. The final incarnation of Metropolitan was a company called Luke Anthony Ltd of Camborne, Cornwall, an organisation known to have survived into the early 1960s. In the late 1940s and early 1950s there was an acute shortage of machine tools on the UK market, with very long delivery times and, although the Forties looked, at a glance, exactly like the Clausing, they were not made in America. All the Fortis castings were subtly different and with a finish inferior to those by Clausing. In addition to other, smaller changes (detailed in the Fortis pages), a different screwcutting gearbox similar to the second version of the Clausing box, but without the "V" arrangement of the selector holes. The Fortis was advertised as being available in two versions, the "Standard" and "Precision", the latter "built to Schlesinger limits for toolroom or production work". In reality it is unlikely that the lathes were built to two different standards and the "precision" lathes would have been those that came through the post-build alignment tests with the 'highest scores'. Spindle speeds also differed from the Clausing being doubled in number to 12 and ranging from 40 to 2350 rpm. The stands were also unique with one incorporating a motor mount inside the left-hand cabinet leg.
Mk. 3a
Within four years the lathe was again modified, introducing changes that were to become a standard feature of the forthcoming, and quite different, 200 Series model.
The castings of the saddle and cross slide were increased in thickness -  which removed the need to mount the top slide on a 'post' - and the whole assembly now looked much more rigid, although at the expense of the swing, that was reduced by 1/2" over  the carriage; unfortunately, yet another chance was missed to increase the size of the tiny compound-slide micrometer dials. The countershaft and clutch was modified to put the clutch pivot on the left - and hence place the operating arm in a better position for left-handed operation.
The tailstock was greatly improved (being the complete unit to be used on the 200 model) with the main casting considerably strengthened, the barrel diameter increased from 1" to 13/16" and a proper (and rather large) "split-bar" barrel clamp fitted - no longer was it necessary to distort the tailstock casting around a slot in order lock the barrel in a set position - whilst the original quick and effective toggle-type bed lock (which was also to be employed later on larger Clausing lathes) was retained.
At extra cost the lathe could be ordered in a better-than-standard finish; instead of a simple undercoat and top coat, the castings were all filled, sanded down by hand and carefully finished in a lacquer.
Later examples of the 100 Series, from 1949 to when production finished in 1965, were fitted with the much-improved apron that began life on the all-new 200 series lathe - it obviously being more economical to produce one design of "Automatic" apron than two. When Atlas bought the company, in 1950, in order to make the lathe fit in with their existing model range, they renamed it the Model '4800'.
200 Series
The 200 Series was an entirely new design, from a fresh set of castings, with production commencing very late in 1948, with the first delivery dispatched on March 31st., 1949. The most radical change centred on the drive system; all the speed changes were made before the drive belt reached an 'overhung' pulley on the left-hand side of the headstock spindle. This system had been used before, but only, I believe, on various light-duty wood and wood-cum-metal lathes; to commit to such a design on a mainstream, medium-duty centre lathe was a bold move. In the event the designer's courage paid off and countless others - amongst them Emco, Myford 254, Scintilla and Wabeco - successfully copied the system. As an aside it is interesting to consider the extraordinary lengths that some makers of small lathes went to over the years in order to provide a finely-engineered pulley arrangement between the two headstock bearings - when they could have achieved comparable results with a much simpler and cheaper (though some would argue aesthetically-inferior) overhung system.
The swing over the bed of the 200 Series was a true 12.75 inches, over the saddle wings 12.25 inches and over the cross slide 7.5 inches; three bed lengths were available giving 24, 36 and 48 inches between centres.
The forged, hardened and ground headstock spindle (with a generous 13/8" bore and 1-inch collet capacity) ran on Timken taper-roller bearings and was fitted with the excellent 'long taper-key drive' nose in an L-00 size fitting that gave both a very rigid assembly and absolute security when running in reverse; the taper bore was finish ground in place after being mounted in its own bearings.
Because the headstock spindle was now driven by either one or two V belts from its extreme left-hand end, the headstock could be made in the form of a rigid, open-top box and lubricated from an oil sump within its base - ensuring that the backgears and leadscrew reversing mechanism had a much better chance of survival than before - especially when used for extended periods. Backgear could be selected almost instantly by pulling on a large handwheel fastened to the end of the spindle and throwing over one lever positioned towards the top left of the headstock face.
Two drive systems were offered, a conventional 4-step, V-belt countershaft that gave a total of 8 speeds from 50 to 1300 rpm and an infinitely-variable type that employed expanding and contracting pulleys and produced a usefully-superior speed range of 30 to 1400 rpm. The recommended motor for the ordinary-countershaft lathe was a 1760 rpm 1/3 hp - and for the variable-speed machine a 1760 rpm 1/2 hp.
The double-wall, sump-lubricated apron carried an all-new (and subsequently much-copied) easy-to-use and positive-action power-feed control system.  A centrally-located lever was moved upwards for power sliding and downwards, through a protective spring-loaded central position, for power surfacing. There was no need to screw in a clutch or move a gear to engage the feed and, more importantly, it could be instantly and safely disengaged with a flick of the lever - a vast improvement on the previously-used, rather-uncertain mechanism.
The compound slide had already been modified on the last of the 100 Series lathes, the Mk. 3a, and this design was continued for the 200 - even to the small micrometer dials.
The screwcutting gearbox was completely new and Paul Clausing's pride and joy - it being designed and developed entirely by himself. It was not only radically different to the first box - completely sealed, running on ball races and lubricated by splash from an oil supply retained within its base - but also operated in an entirely-new manner. To change the thread or feed rate (of which there were still 48) a selector handle was moved until a red marker, under a transparent cover, was opposite the required figure on a chart; a second "engage" handle then moved automatically to a pre-determined position. The "automatically-determined position locator" was an ingenious mechanism; when the lever was pulled a spiral spring was torqued that lifted the gear cradle up until the gears mated - an over-run (one-way) clutch then held the cradle in place. The leadscrew was tensioned between taper roller bearings - eliminating play and giving a more immediate response to the power-feed control lever. As a finishing touch, the gears and pins that carried the drive from headstock to gearbox were provided with lubricant from pipes connected to two oil caps mounted on top of the headstock.
Three different maker's stands were available; the cheapest was a steel bench, with either a flat wooden or sheet-steel chip-tray top that could be had with the ordinary 8-speed V-belt drive system. There were no cupboards or doors and the left-hand side of the column had to be left open for access to change speeds. The lathe fitted to this stand - and the one supplied for mounting on the customer's own bench - had a final drive to the headstock spindle by a single "B-section" V belt. A rather better stand was described by its makers as the steel 'Semi-cabinet'; this was fitted with a door to the (larger) left-side column and was able to accommodate either of the two drive systems. When mounted on this, or the other superior stand, the final drive from both kinds of countershaft was by twin "A-section" V belts. The best mounting available for the lathe was the 'Full-cabinet'; this had the same left-hand column mounting for the drive but with the addition of three rail-supported drawers in the right-hand column.
Although a very well-engineered lathe, with a generous work-holding ability for its size, the Clausing 200 Series (like many other "light" 12-inch lathes) did not have the sheer mass or industrial 'presence' of, say, a Colchester Student or Master of similar capacity - to say nothing of the fully-geared headstock, optional detachable-gap bed, dual-metric/inch screwcutting gearbox and 3 hp motor offered on the (very much more-expensive and less-compact) English machine. When Atlas took over the company in 1950, the 100 Series lathe was renamed the 4800 and continued in production until 1964; the 200 series lathe became the 6300 and was available until 1968.
