Azeta Milling Machines
If you have an Azeta milling machine, or any sales or technical literature
for them,  the writer would be interested to hear from you

Azeta Lathes


Although Azeta, based in Milan, Italy, made a wide range of milling machines, few were exported to the UK and details are sparse. However, one very useful universal miller, the FU-1 did sell in small numbers and was well liked by those who encountered it.
Intended for small repair workshops and factories, training schools and colleges, the FU-1 was a professional-quality machine, heavily built and with its stout, internally ribbed cast-iron column and coolant-holding foot cast as one. The overarm was of typically 1950s appearance having a rigid dovetail base and a pair of large cross bolts to lock it in place. All shafts and gears were of good quality chrome-nickel steel and induction hardened where necessary.

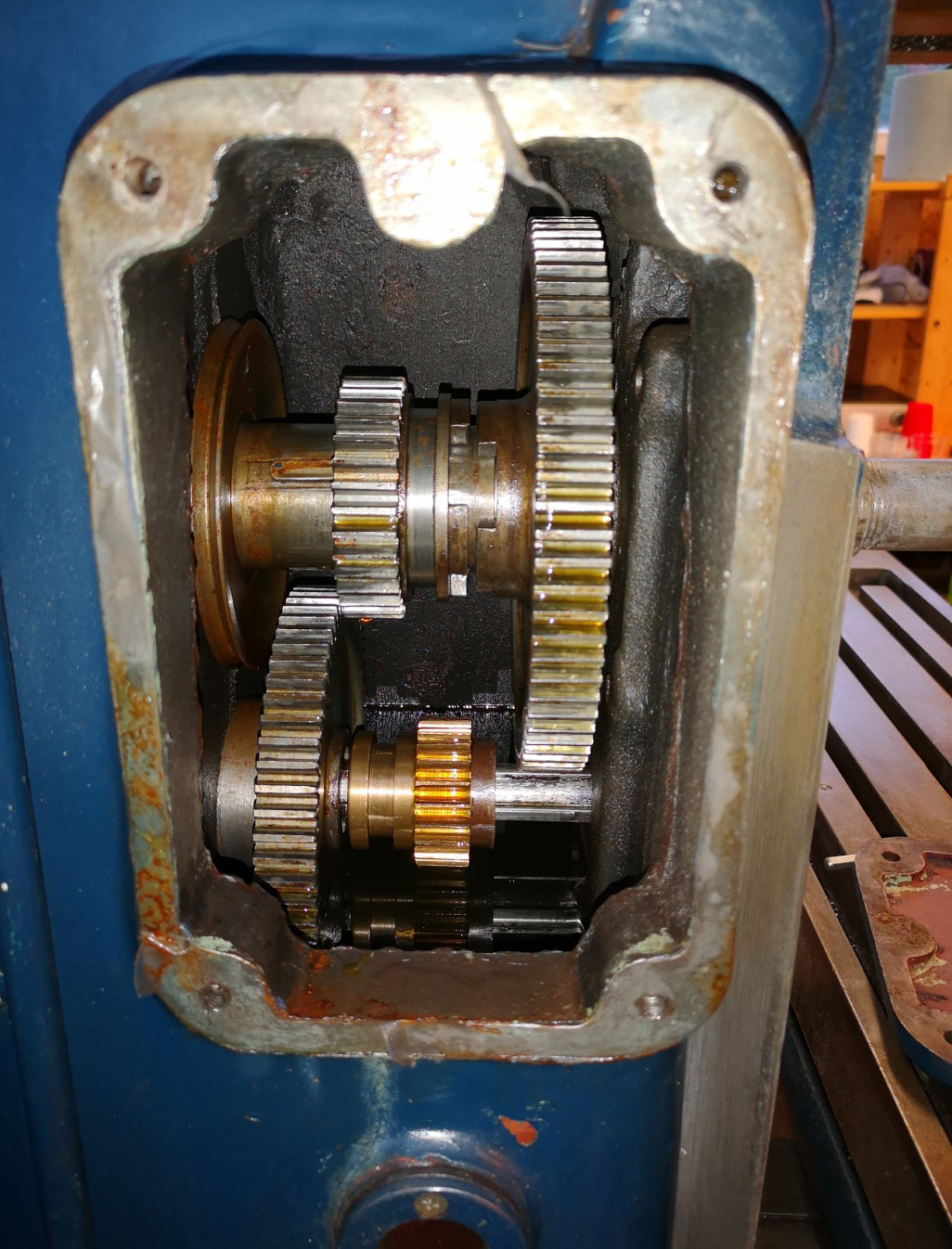

Running in high-precision taper roller bearings, the spindle had either a No. 4 Morse taper or ISA 44 nose and had either six speeds from 35 to 1100 r.p.m. driven from a 2 h.p. motor or, to special order, 12 speeds spanning 25 to 1300 r.p.m. from a 2-speed motor. The motor, held on an adjustable plate within the main column, drove to the oil-bath, speed-change gearbox using two V-belts. The final drive was though a clutch, two operating handles being provided, one at each side of the machine.
Just one table was offered, a 1050 x 280 mm (41" x 11") with three T-slots and a longitudinal travel of 720 mm (28

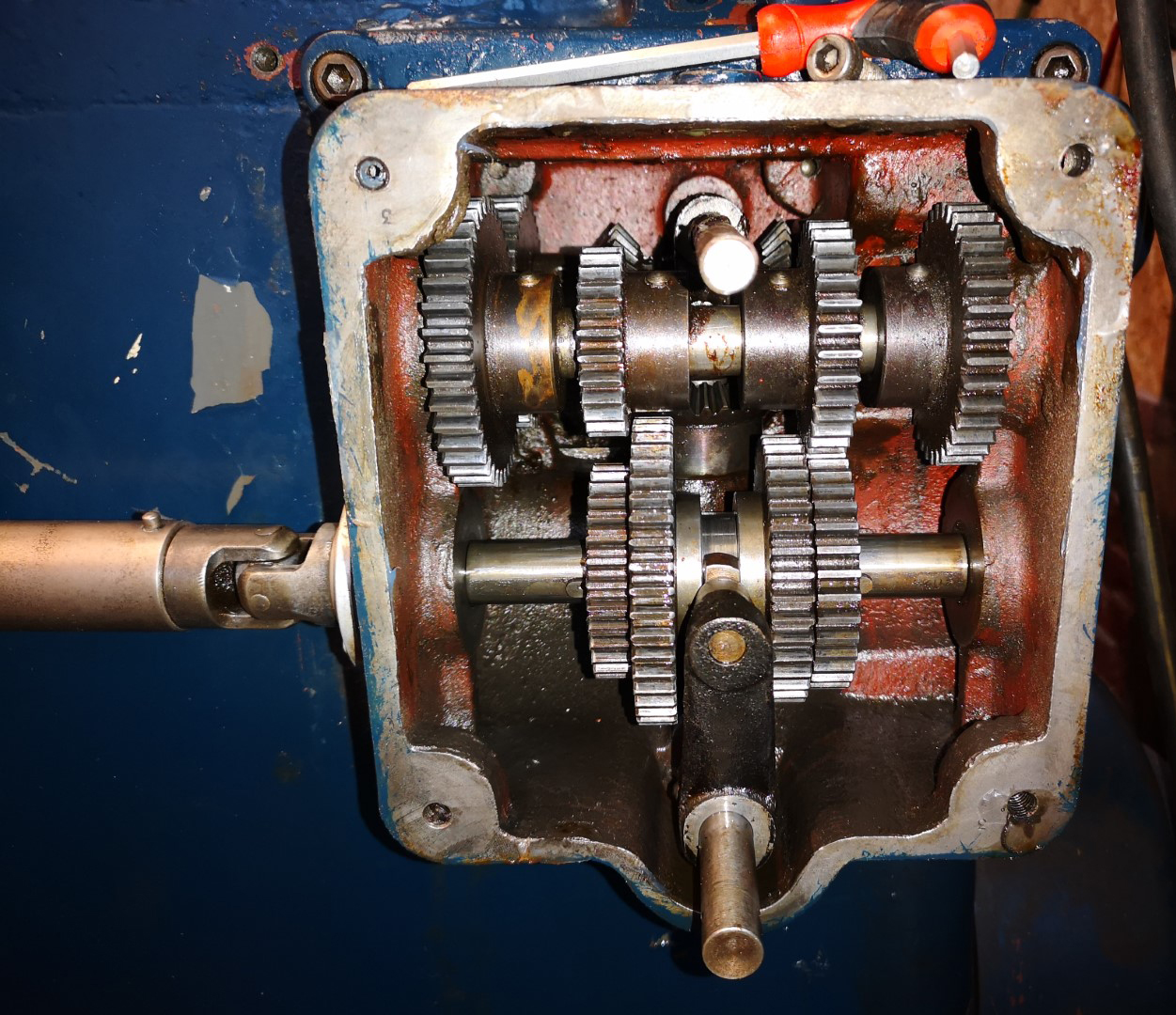

3/8"), in traverse of 250 mm (10") and vertically 450 mm (173/4"). The table was driven from a gearbox built into the knee, a sight-glass being fitted to check the oil level. The drive came from a splined carden shaft driven from a pulley mounted on the right-hand face of the column and turned by V-belt from an extension to the main spindle. Twelve rates of feed were provided that spanned 12 to 265 mm/min (0.47" to 10.43"). As an option, the miller could be fitted with power cross and vertical feeds and also, with the addition of another motor, rapids in all directions - the control lever for the rapids horizontal setting being duplicated at both sides of the machine.
Included as part of the standard equipment supplied with each new machine was a simple swivelling vertical head that, unfortunately, lacked a quill feed. Other items included a cutter-holding arbor with spacers, the motor and switchgear, coolant pump and lines and the necessary spanners and keys.
On the options' list were the following items: a slotting head; a universal dividing head with plates and gears; a swivel-base machine vice; a set of bracing bars to go between knee and overarm and an intermediate arbor support bracket..

Azeta FU-1 Universal Milling Machine fitted with standard vertical head
