Pitt's Lathe
Pitt's Yorkshire Machine Company

Long forgotten, and with just a handful of known examples  (in Australia, South Africa  and one in the magnificent Museum of Making in Calgary, Canada) the history of the Pitt's Yorkshire Machine Company must remain, for the moment, a mystery. However, known to have been based in one of the centres of 19th century machine tool production, Cleckheaton near Liversedge, in Yorkshire, "Pitt's" produced lathes absolutely typical of the era, from simple treadle-powered plain-turning models to medium-sized, backgeared and screwcutting types typical of the late 1800s. As was often the case with lesser-known manufacturers, their products were often re-branded by larger agents and distributors for sale under their own or other names - the example residing in the U.S.A. having the cast-in letters chiselled off the bed and painted over. When stripped and cleaned, the truth was revealed.
With a 6-inch centre height and admitting anything between 36 and 54 inches between centres, the Pitt's had a rather slender, typically English-pattern, flat-topped bed with 60-degree sides. In the days of carbon-steel tools, rigidity was not as great a concern as it became in later years and the bed, especially if equipped with the optional very deep, removable gap piece to weaken it, would not have been especially stiff. The headstock spindle with a 1 " x 6 t.p.i thread on its nose, ran in bronze bearings - of parallel bore but tapered on their outside for adjustment - with the spindle end thrust taken on a remote bar to the left. However, in the case of heavier Pitt's models this unit, instead of being supported on posts, was cast (unusually) as an integral part of the headstock - a most distinctive recognition point for the maker. The backgear assembly was heavily constructed - and the 3-step cone pulley a little wider than normal for the size of lathe.
Power sliding and surfacing feed were fitted with the drive to the cross-feed screw by an exposed gear on the face of the apron, a system also widely employed at the time on German Weisser lathes. Two designs appear to have been employed: an earlier type with the gear crudely and dangerously exposed on the end of the cross-feed screw and a later, improved arrangement, where the second part of the drive was enclosed and the cross-feed gear mounted inboard of the operating handle.
Screwcutting employed a 2 t.p.i. leadscrew driven by changewheels though an externally-mounted tumble-reverse mechanism.
With awkward-to-operate crank handles the compound slide rest also lacked micrometer dials - as did most of those from competing makers, their widespread use being a development of later years.
If you have a Pitt's lathe - or other machine tool by the Company - the writer would be very interested to hear from you..

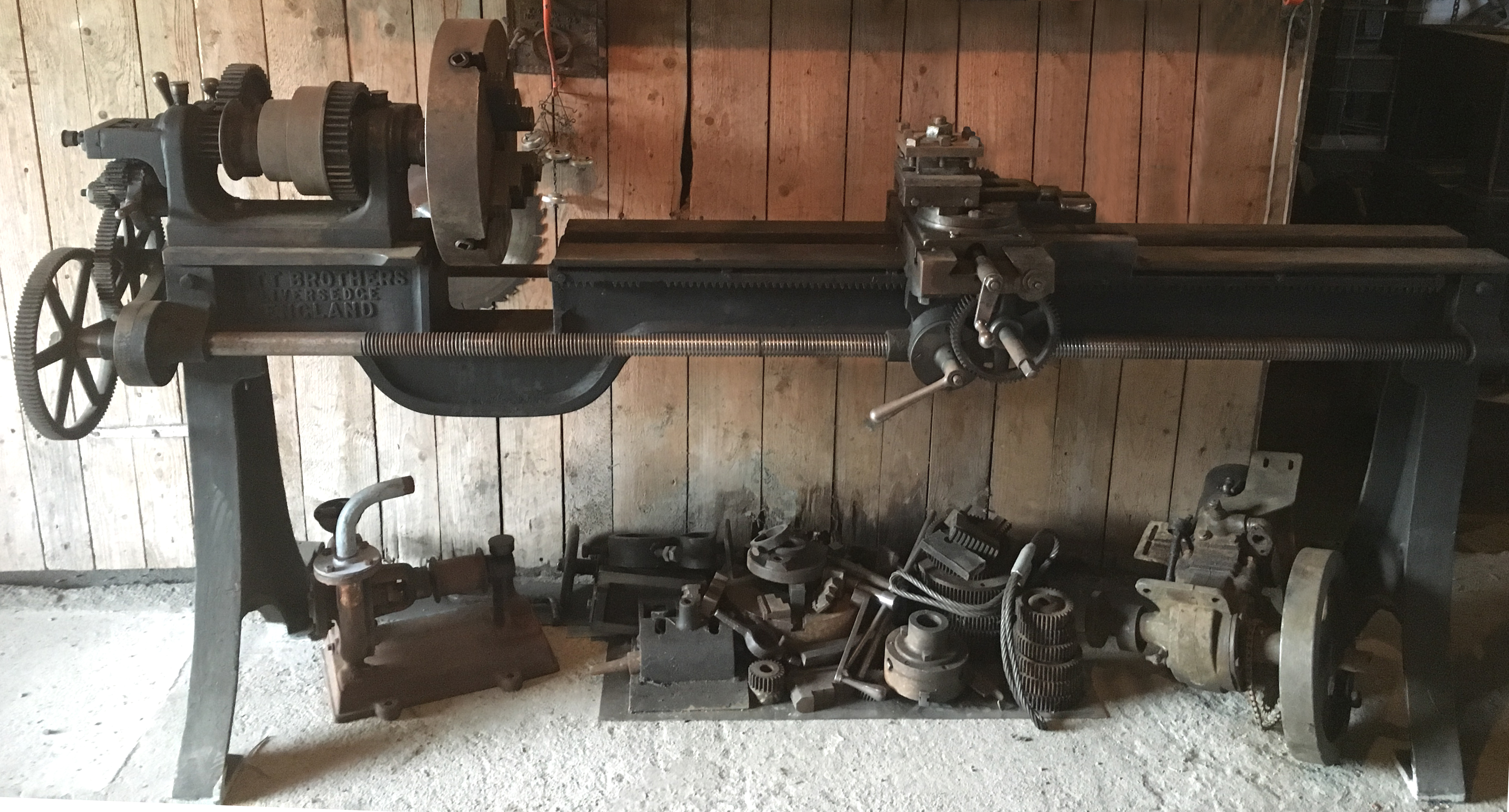

A lighter Pitt's lathe with the spindle thrust plate supported on screw-in posts. The gear formed on the end of the cross-feed screw (for power cross feed) appears to be original--another example with this design having come to light,

Above and below: another model of the heavier Pitt's lathe - but this time with an even cruder power cross-feed mechanism involving a gear formed on the end of the cross-feed

The Pitt's in the Canadian Museum of Making

Harry Pitt's 3.5" x18" backgeared, plain-turning gap-bed lathe. Originally flywheel and treadle driven, this is a design typical of the type offered to amateurs and small professional workshops in the period 1850 to 1900
