Garvin were an American firm, based in Spring and Varick Streets in the heart of the shipping district of New York City. The company offered a very wide range of products amongst which were millers in plain, horizontal, vertical, manufacturing, duplex and hand-operated types; smaller types of planers and profilers; "screw machines" (capstan lathes), a variety of spiral-gear and worm-milling attachments, spring-coiling machines, rotary tables, index centres of many kinds, tool and cutter grinders, die slotting machines, dividing heads, countershafts (including an ingenious slow-speed spiral-geared model), support bracketing, single and gang drill presses, headstocks, compound slide rests, capstan tooling  - and a range of screwcutting and plain-turning lathes. The plain lathes, illustrated below, were of a type very common during the early years of the 20th Century and designed for hand work, polishing, forming and wood turning.

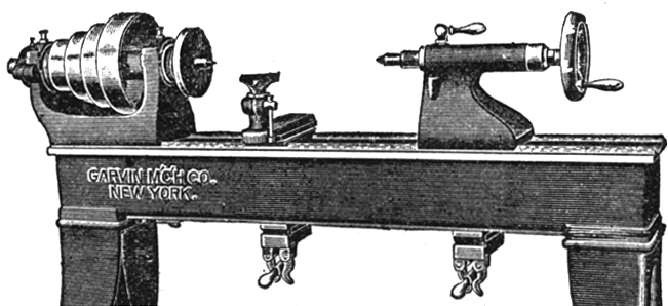

The lightest Garvin plain lathe built in 10-inch and 12-inch swings and designed for hand work, polishing, forming and wood turning.
Note the swing-down, quick-release handles used to lock the tailstock and tool rest - a thoughtful touch and obviously designed for a hard-working, industrial environment.

A heavier Garvin lathe - the 12-inch - fitted with a combined screw and lever-feed tailstock which could be changed from one action to the other by simple tightening or loosening a lever - further details of this device are at the bottom of the page.

The largest Garvin plain lathe was the 15-inch, available in capacities of 20.75",  23" and 28.5" between centres - with the latter machine weighting a not-inconsiderable 765 lbs.

Compound slide rest, with un-graduated screws, designed for the light-duty 10-inch and 12-inch lathes.

Heavier slide rest for the 15-inch lathe with a slotted toolpost and graduated swivel base.

The Garvin combination screw and lever-feed tailstock.
The tailstock barrel was carried inside a sliding sleeve which was normally free to move under the control of the lever (K). When the sleeve was locked by the handle (H) the normal action of a screw-feed barrel could be used by rotating the handwheel (N). A depth stop (G) was fitted to the side of the casting.
