Craftsman 6" (Atlas) Mk. 2 Lathe - Page 2
Craftsman 6" Mk. 2 Lathe Home Page   Craftsman 6-inch Page 3

Craftsman 6-inch Lathe Accessories

Craftsman Home Page   Craftsman 6" Lathe Mk. 1

A comprehensive manual and data pack is available for this model



Early saddle and apron assembly

Saddle and apron cast as-one



Late-type apron with adjustable carriage handwheel

Component parts of the top slide

The assembled top-slide

Component parts of the tailstock. Note (bottom right) the proper split compression clamp to lock the spindle



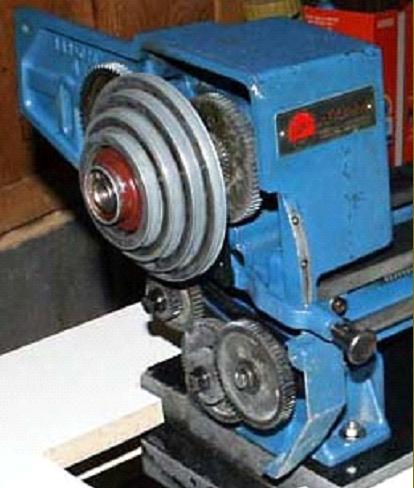

Late-model Atlas/Craftsman 6-inch Mk. 2 headstock cast in ZAMAK. Note the thin walls and generally weak appearance of the assembly with the all-important spindle bearing housing being of particularly flimsy construction

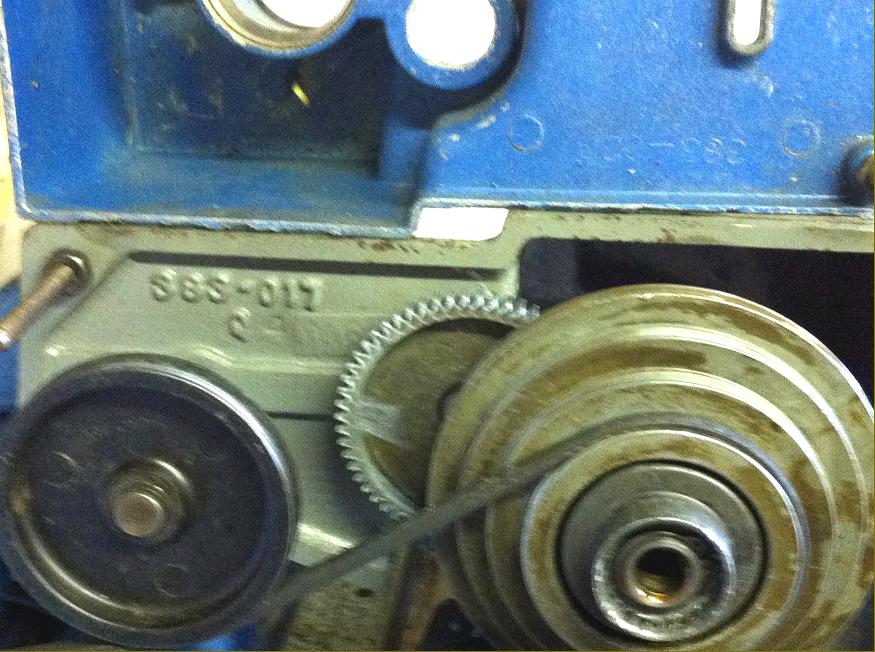

Outside of a ZAMAK headstock casting



Note only was the original cast-iron headstock casting in a stronger material, it was also
much more heavily constructed. Note the mass of metal supporting the spindle bearings
