Bergeon Lathes
Bergeon & Cie
Bergeon Precision Drills Bergeon Photographs Bergeon Model 50
Founded in 1791, Bergeon & Cie are based in Le Locle, a Swiss town famous for its precision engineering skills. The Company's watchmakers' lathes were, for many years, built exclusively along lines of the original "D-bed" Geneva-pattern type - but were eventually joined by the heavier Model 50, a WW type plain-turning precision lathe with a conventional cast-iron bed. Unfortunately, the model 50 model not only looked rather prosaic but was finished in a "hammered" paint finish quite out of scale with the size of the machine. However, the quite superb Bergeon quality was unchanged and the lathe ever bit as good as it predecessors. With production of their superb 8 mm Geneva units set to continue in the 21st century, today the Burgeon has few competitors in its specialised niche withs most other European manufacturers of the type (Boley, Lorch, Wolf,Jahn, Boley & Leinen and Favorite) having long ago ceased trading. The USA continues to offer competition in the form of the super machines made by Derbyshire and Levin - which are not only perfectly capable of being used for watchmaking work, but can also, thanks to their WW style beds, be adapted to a number of other specialist tasks and mount accessories suitable for production work.
Available during its long production run with various combinations of features, the Bergeon "Geneva-type" watchmakers' lathe was built in three main configurations:
Model C with a 275 mm long bed bar, a "right-hand" headstock, simple "push-barrel" tailstock and a compound slide rest.
Model D with a 275 mm long bed bar, a "right-hand" headstock, "push-barrel" tailstock and a hand T-rest.
Model E with two tailstocks - one fixed and acting as the headstock, the other loose - and a hand rest. This model replicated the function of a pair of watchmaker's turns, the simplest and one of the earliest forms of precision turning tool.
All versions were available as either uncased, basic units, or combined with various accessories and fitted into one of three different sizes of wooden case. Because the lathes could be built up from a variety of components, in different combinations, the standard sets were named after their case, rather than the model of lathe they contained. Unfortunately, the potential for confusion was compounded by mistakes in catalog proof reading and probably translation, for the original sales brochures often have the contents listed under the wrong case - but who is to say that the headings and set names were not incorrect as well ? According to what can be deduced, the boxed set listed as the "Lathe F" (set up for watchmakers specialising in pivoting work) was really a Model D lathe in the middle-sized "F" case, the "Lathe Standard A" was a Model C lathe in the small "A" case and the "Complete Lathe B" was a Model C Lathe with a very complete range of accessories in the "B" case; the current machines are listed under a different numbering system.
Regardless of the confusion surrounding the literature the Burgeon has always had a particularly pleasing cosmetic finish with the main components in beige enamel paint and other surfaces nickel plated..
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

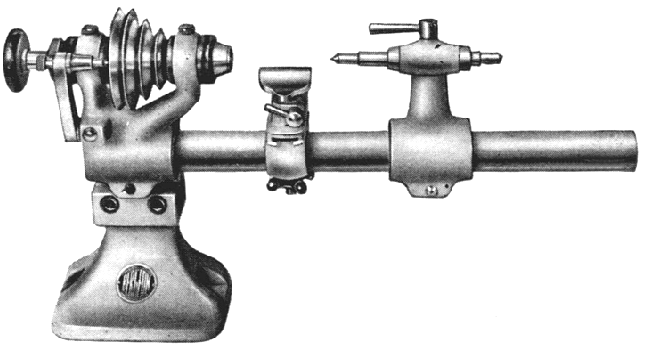

Bergeon Model C with the optional gap-bed fitted and both headstock and tailstock bed feet
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Bergeon compound slide rest
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
|
|

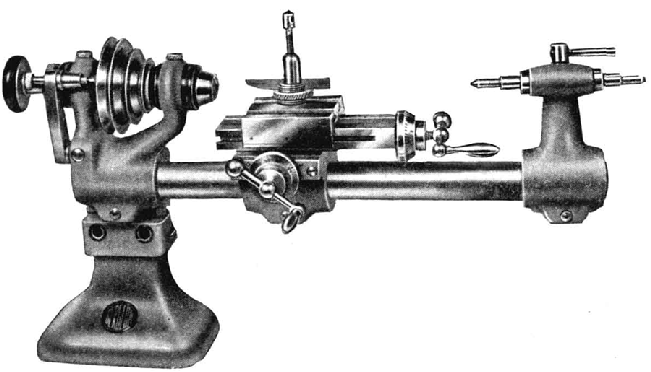

Bergeon Model C lathe with compound slide rest and single bed foot
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Bergeon Model D lathe with sliding hand rest
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

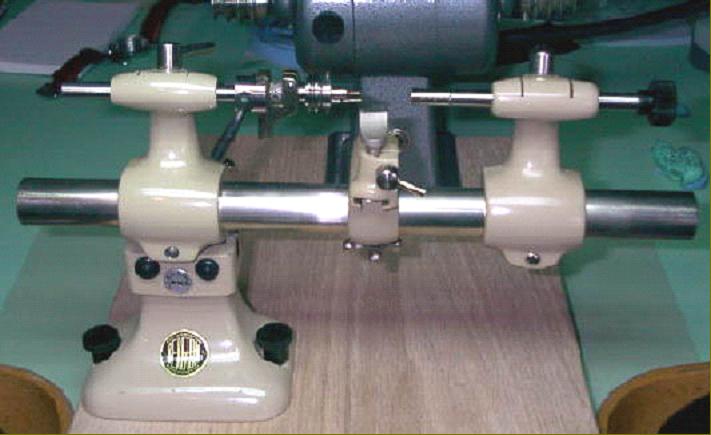

Bergeon Model E lathe with "Fixed" and "Moveable" tailstocks and standard handrest
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

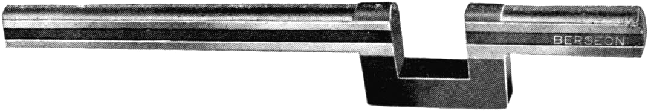

Special bed with gap section
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
Beautifully constructed, miniature compound slide assembly
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
High-speed grinding attachment for use in the toolpost and driven by the Adjustable Driving Assembly which mounted on either the countershaft or electric-motor bracket
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|

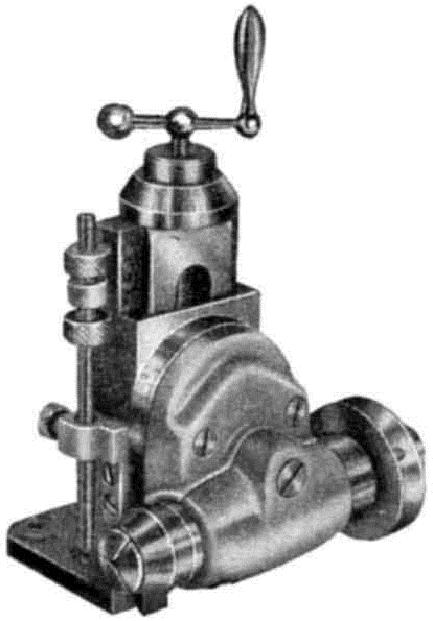

Vertical slide carrying the (8 mm collet) swivelling, high-speed milling/drilling head
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
4-way toolpost with a wing-nut retainer - a good way of limiting the user's tendency to over-tighten the fitting
|
|
|
|
|
|
|
|
|
|
|
Mandrel faceplate - or "faceplate and pump centre" - a most useful accessory, able to hold a wide variety of watch components
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
The very neat, standard 3-speed countershaft unit with plain bronze bearings
|
|
|
|
|
|
|
|
|
|
|
|
|
|

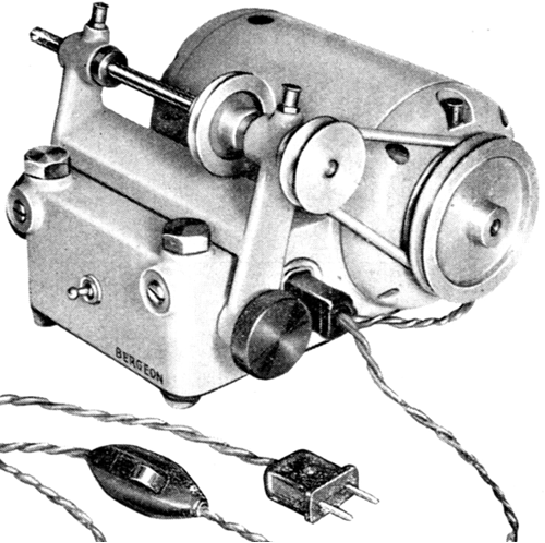

The Bergeon electric motor (with a two-step pulley) was cradled in a cast-iron frame and available with either a single or three-phase motor.
The 1-phase, 1/8th h.p. version was controlled through its 200 to 6000 rpm rev range by a resistance-controlled infinitely-variable speed unit, whilst the 3-phase model, which could not be controlled by a resistance, obtained its 800 to 3000 rpm speed range by means of the separate countershaft, illustrated below
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|

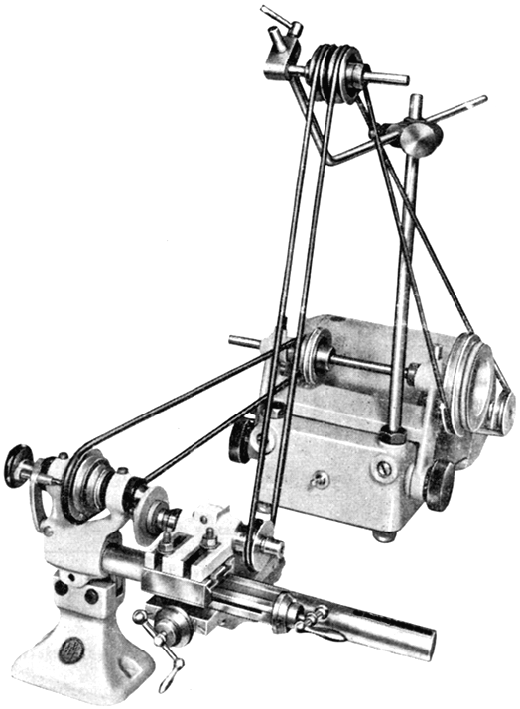

A fully adjustable "Driving Attachment" was available which mounted on an extension of the countershaft hinge rod. Designed to drive accessories - grinding and drilling spindles for example - clamped in the toolpost, the pulleys all ran on roller bearings. The same unit could also be plugged straight into the casting of the motor drive unit - see below
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Listed by Bergeon as the "Hand Flywheel" this attachment both carried the lathe and drove it.
It allowed the lathe and its attachments to be used when an electricity supply was not available - and was designed to be clamped in a bench vice
|
|
|
|
|
|
|
|
|
|
|
The adjustable "Driving Attachment" could be carried directly by the motor mount when used with a variable-speed 1-phase motor
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
High-speed Grinding Attachment
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|

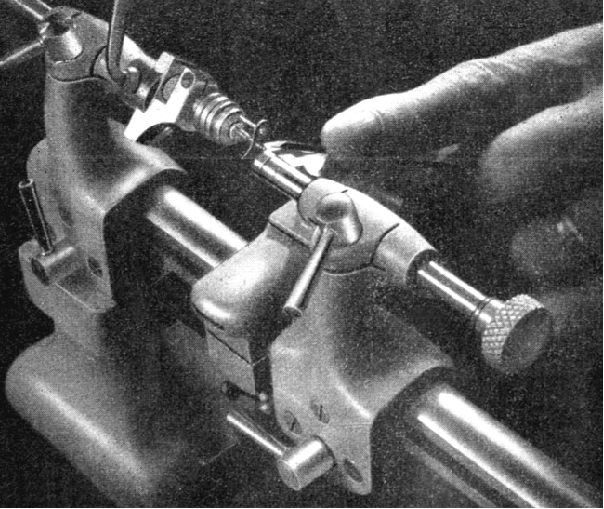

Turning with a hand graver
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|

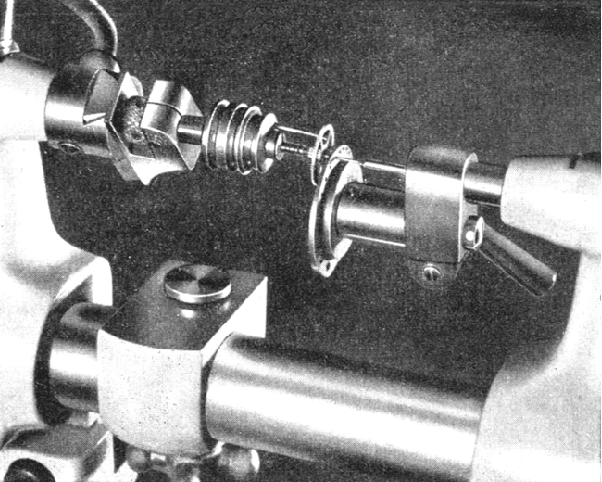

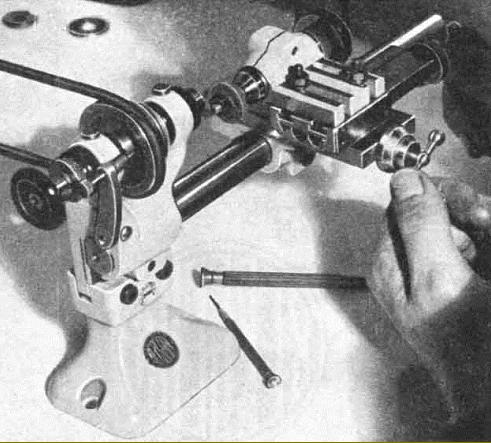

The Mandril faceplate - or "faceplate and pump centre" - in use with the compound slide rest
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|

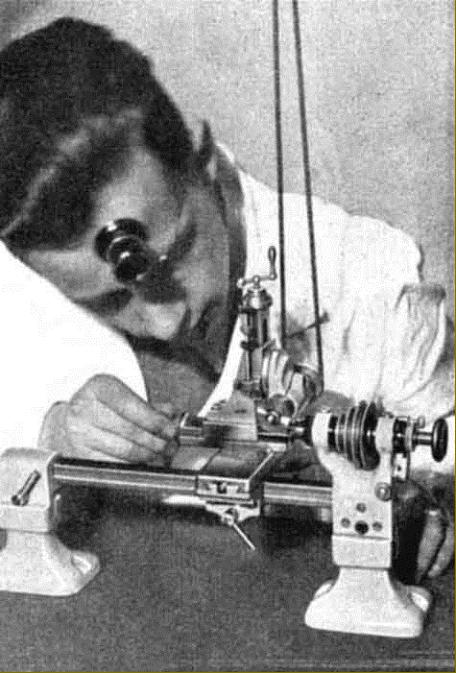

The high-speed milling/drilling head and vertical slide being used horizontally
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

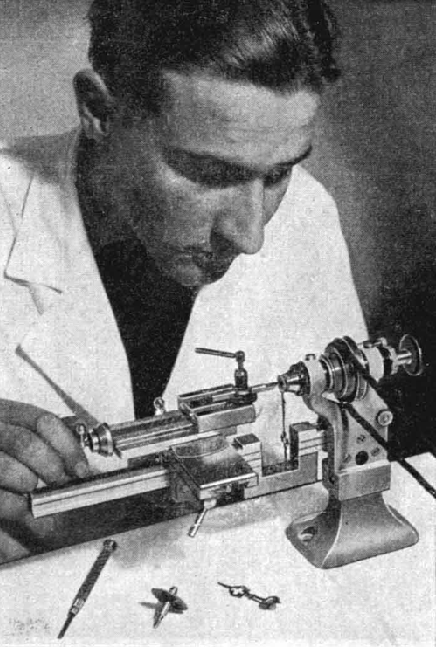

A Model C being used to manufacture a series of the same component by use of a revolving 4-position toolholder and a lever-action tailstock.
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|

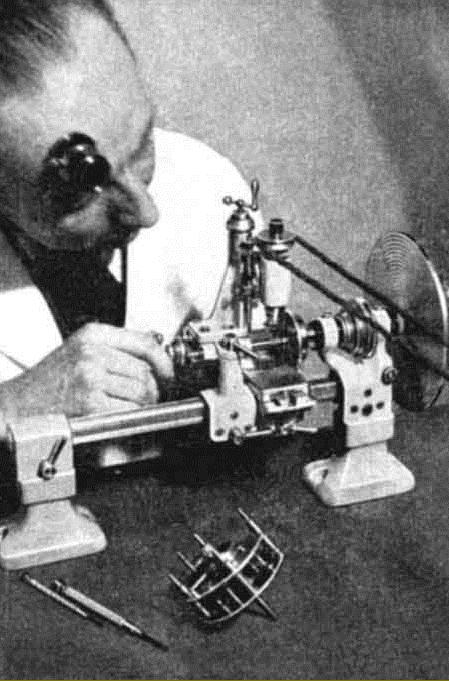

Using the large dividing plate, vertical slide and high-speed milling/drilling head to cut the teeth in a watch barrel
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Swinging a large diameter in the gap bed
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

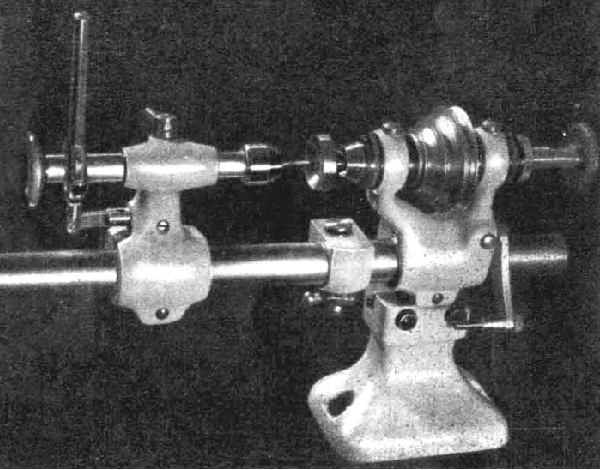

Lever-action Drilling Tailstock
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

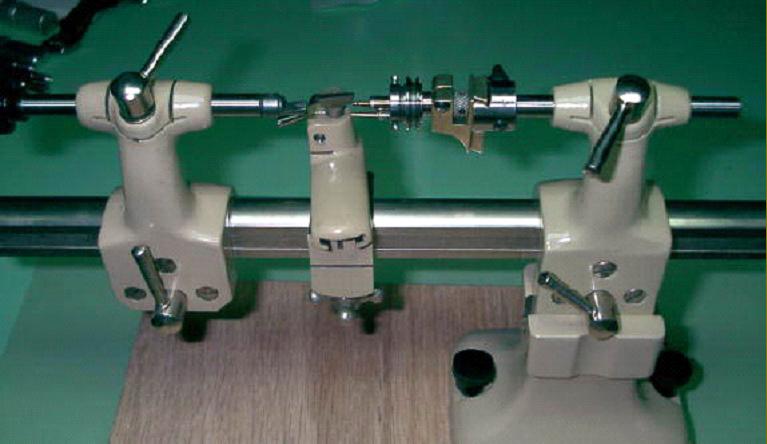

Rear view of a Model E (the simplest configuration) being used with the "Runner combined with Slide and Pulleys"
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Front view of a Model E with the "Runner combined with Slide and Pulleys" mounted
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|

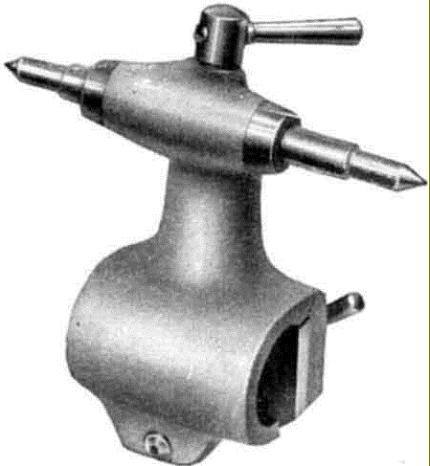

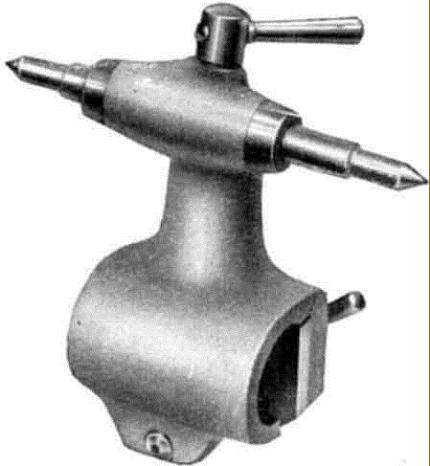

Moveable tailstock - available with both solid and hollow spindles.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

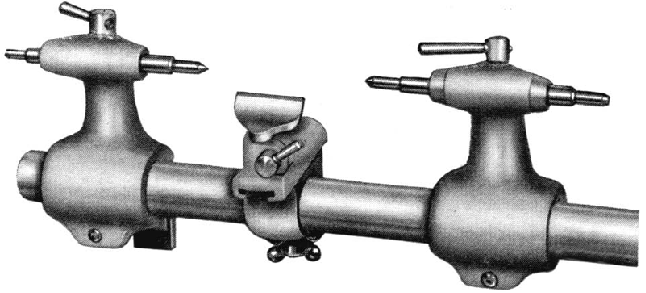

Fixed tailstock - designed to take the place of the ordinary headstock and be fitted into a vice or standard foot. Available with both solid and hollow spindles.
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tailstock with lever-action drilling spindle.
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
Standard fixed-height foot
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
A Model C lathe in the "A" case. This outfit contained (part numbers in brackets):
(1) Headstock (right hand),
(2) Moveable tailstock

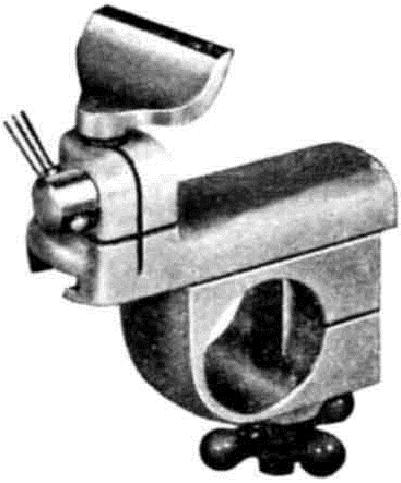

(5) Hand rest with large and small T rests
(7a) Lathe bar bed length 275 mm
(10) Foot with key
(11) Compound slide rest

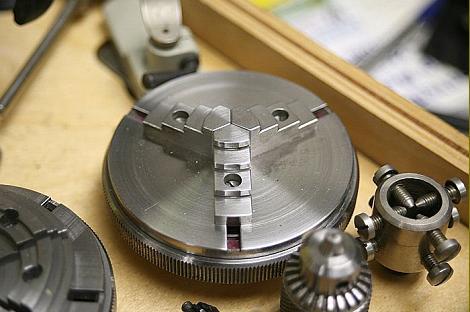

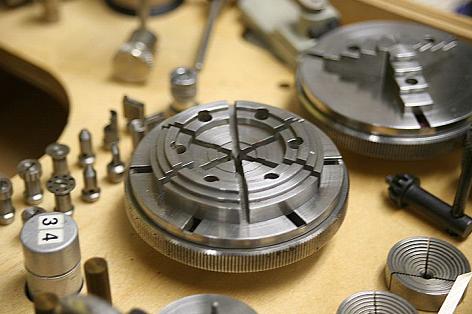

(15) Self-centering 3-jaw chuck
(16) Universal self-centering chuck
(21a) Set of 20 spring collets Nos. 5, 8, 10, 12, 15, 18, 20, 22, 25, 28, 30, 32, 35, 40, 45, 50, 55, 60, 65, 70/10 mm
(23) Set of five recessed step chucks
(26) Grinding wheel holder
(27) Milling cutter holder
(29) Five assorted brass wax chucks with steel adaptor
(30) Carrier chuck (drive plate)
(42a) Empty case
Total weight 8.25 Kg.
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

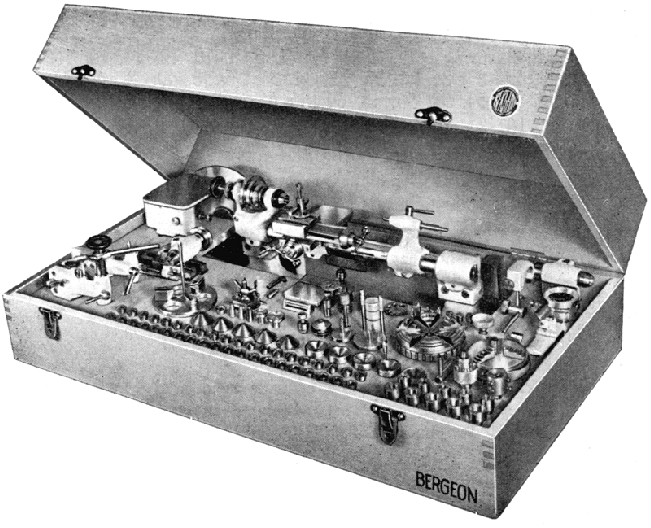

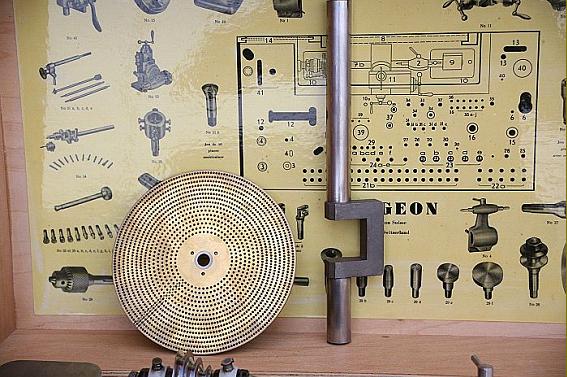

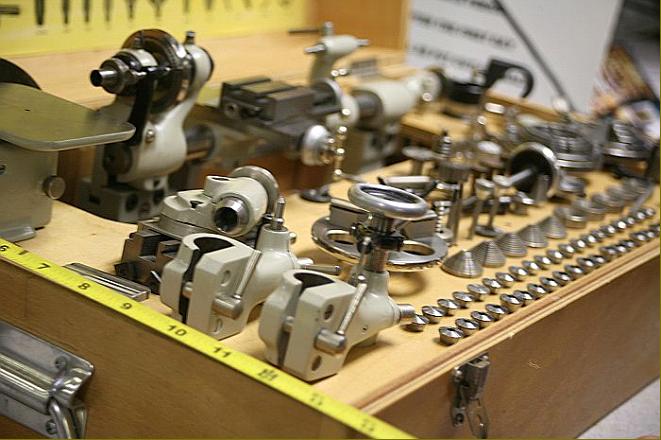

Comprehensive boxed set labelled "Complete Lathe B". This was a magnificently equipped outfit which, besides 40 spring collets, 5 recessed and 5 taper step collets, 10 recessed collets and a very full range of small fittings also included a gap-bed lathe bar, a milling attachment, grinding attachment, 160 mm diameter dividing plate, a pump-centre faceplate (mandrel faceplate) and both moveable and drilling tailstocks.
Total weight 18 Kg.
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|

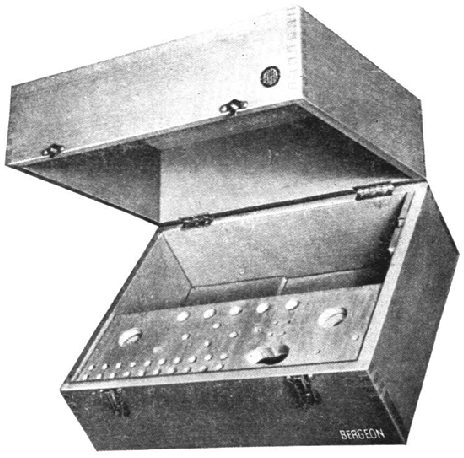

Standard Case A (part Number 42)

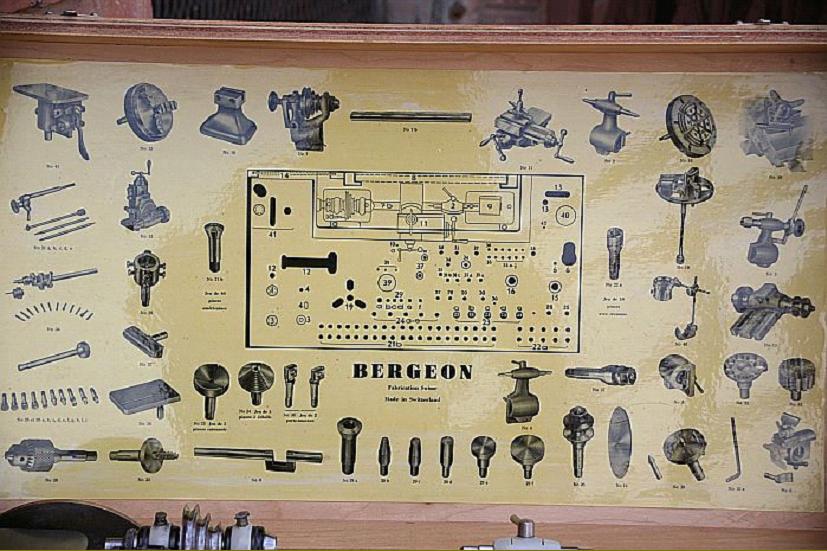

On the inside of the lid of all three cases , No. 42, 43 and 45 there was a chart showing the complete contents - making it easy to check that everything was back in place - or, because the cases were often supplied only partially filled, to temp the owner into buy the missing bits.
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
The one to unwrap on Christmas morning
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
|
|
|
 |
|
|
|
|
 |
|
|
|
 |
|
|
|
|
 |
|
 |
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
