Early 11" and 12" Sheldon lathes were, apart from their centre height, almost identical. Both were available with between-centres capacities of 24", 36" and 48" and offered with either a semi (3-speed) or full quick-change screwcutting gearbox able to generate 48 threads and feeds.
Both machines could be supplied either as a "G" Type, with a plain apron, or as a "W" Type with power cross feed; in the latter case the apron was of a much stronger, double-wall construction.
A hardened and ground headstock spindle, of  1
1/16" bore and 4 Morse Taper, was supplied as standard and ran in bronze bearings but as an option the spindle could be supported on either pre-loaded ball bearings or Timken taper rollers.
Several styles of stand and countershaft were available, including a selection of  "fast-and-loose pulley" types for bench, wall and ceiling mounting  - the most complex of which was a "Double Friction Countershaft" which provided, via a crossed belt and locking clutches, a mechanical reversing system.
By the early 1940s this type of separate drive system was considered irredeemably old-fashioned and a range of compact, underdrive stands were made available, fitted with a choice of two all V-belt countershaft units. The "E" Type had eight hand-switched speeds  whilst the "U" Type offered a quick-change mechanism, controlled by two external levers  which could be moved whilst the lathe was running.  These well-designed drive systems, eventually fitted into more modern-looking stands, remained largely unchanged until production finished..



1941 Sheldon 11" lathe on the 8-speed U-Type underdrive stand and fitted with taper turning and draw-in collet headstock spindle running on ball races.

1936 Sheldon 11" x 24"  lathe on the cast iron legs Model WFM - 24Q with a full screwcutting gearbox and power cross feed.

Sheldon 11" lathe Series S of 195 Model ES56P (E drive system with 8 or 16 speeds 56" long bed on the heavy cast-iron pedestal stand).



Sheldon 11" lathe Series S of 1955 Model ES56B (E drive system with 8 or 16 speeds), 56" long bed and on the full cabinet stand.

Special dual inch/metric screwcutting chart

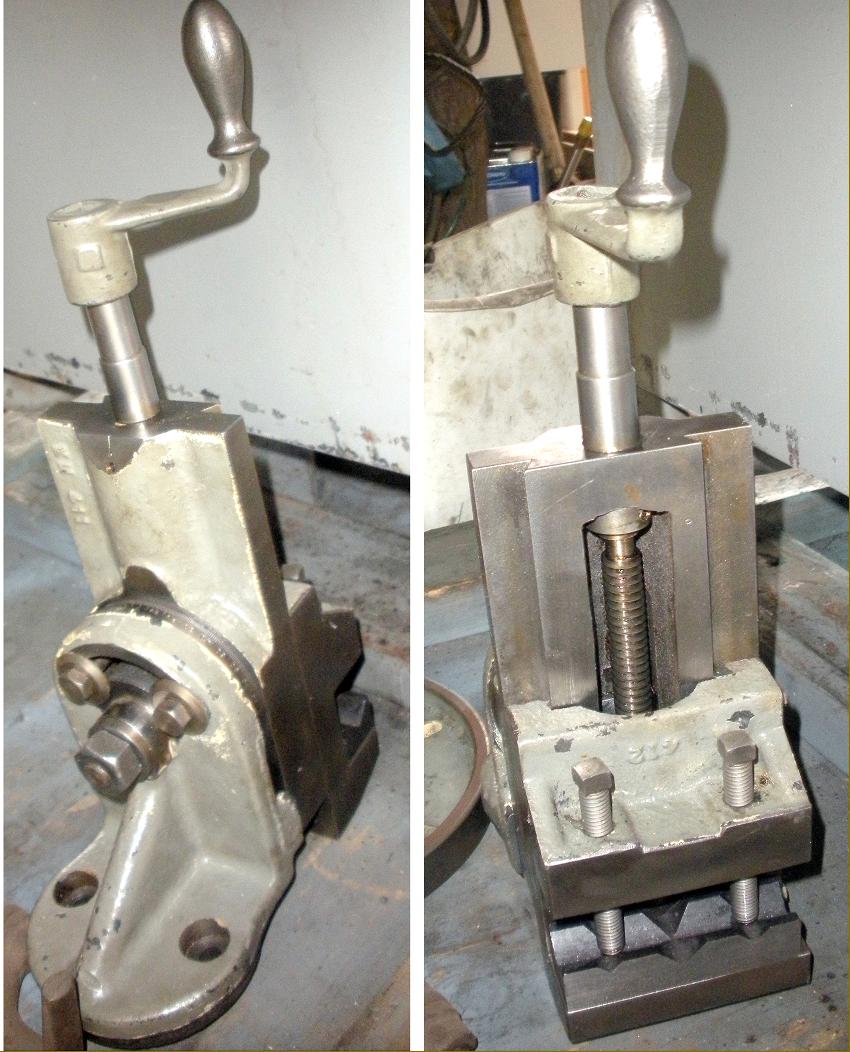

Accessories for the 11-inch Sheldon - including a seldom-found double-swivel milling slide

An expensive option: fitted wooden drawer insert with a complete draw-bar-operated collet set and fittings

The maker's original taper-turning unit with a special one-piece cross slide. Note the sheet-metal cover used to protect the feed screw

Bed-levelling arrangement at the tailstock end - see this page
