Drummond Flat-bed
- an unusual early example with cast-in chip tray  and outside leadscrew -
  Copies of the Maker's Literature, Screwcutting Charts, etc. are available
Round Bed Illustrations    Working on a Round Bed
Rare 4" Drummond Flat Bed   Little Goliath
Drummond Home Page    EARLY 31/2" Drummond    Larger Drummonds   Admiralty Model
1925 M Type   Early Original 3
1/2"   1912 31/2" B Type  1921 M Type  Headstock Comparison
   M-Type Photo Essay    The First Drummond Lathe   Still in Use   Round bed Backgears  Walram
Literature for Drummond lathes, gear shapers and other machine tools is available. Email for details

With Australia seeming to be the home of unusual Drummond lathes - as seen here, here, and here - two examples of yet another interesting early 3.5-inch flat-bed  have been discovered in that country - and two in the UK. With such obvious design points, features and detailing this machine could not be other than a Drummond (although it cannot be ruled out as a copy), and one must surmise that it was taken to Australia by Arthur Drummond, one of the founding brothers, on his visit during there the early years of the 20th century. The lathe appears to be a combination of the specification found on the pre and post-1912 versions, with the bed, headstock and tailstock of the former combined with the front leadscrew and dog-clutch arrangement of the latter. However, three significant differences stand out: the double bolt arrangement at the front of the headstock; a foot at the tailstock end of the bed and the "inverted" form of the cross-slide ways - though the latter arrangement was also employed on the first production Drummond and later 5-inch models - but with longitudinal rather than transverse T-slots. Whilst the post 1912 models had a useful automatic disengage fitted to the carriage drive, this model has just a hand-operated lever on the dog clutch. Other, more subtle differences also occur, some detailed with the illustrations below.
Of course, one cannot ever be absolutely sure that this lathe is a Drummond but several possibilities exist--the favourite being that a large machine-tool merchant ordered a quantity to be produced anonymously that incorporated his own modifications. With only three known survivors it cannot be that more than 40 or 50 would have been made - and for a rival company to tool up (for a relatively complex small lathe) such numbers would make no sense.. There is also the chance that during his visit to Australia Arthur Drummond negotiated a deal whereby a firm built his design under licence - and that may well be the simplest explanation for the antipodean examples. If you have a similar lathe, the writer would be delighted to hear from you.

Looking every inch a Drummond from the early years of the 20th century this "Australian" version lacks the typical crank handles on the compound rest that typified the maker. However, it is likely that these were replaced by an owner seeking the more sensitive feel offered by the "balanced" ball-ended handles shown. Compare with the other model shown here.

A second example of the machine, complete on the original treadle-drive stand, in the foyer of the Lithgow Small Arms factory west of Sydney NSW.
Screwed to the front of the bed above the screwcutting chart is the supplier's badge - Scruttons,  a once well-known supplier of engineering equipment in Australia.
Additional pictures here

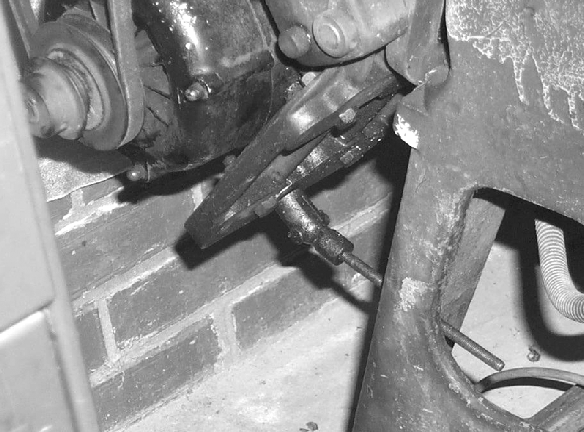

Even the changewheel bracket is a composite type displaying the flat-edged appearance of the early but the two-slot design of the later.

The front headstock bolt was replicated at the rear giving a stiffer assembly than both earlier and later types

The unusual cross slide and its feed-screw micrometer dial might give credence to the view that this is not a genuine Drummond

Whilst the post 1912 Drummond had its leadscrew nut formed with a threaded boss, and made adjustable in a vertical slot on the apron, this model uses a much simpler and cheaper method.
Below:
A rear view showing the double bolt arrangement at the front of the swivelling headstock
